China Closed Cell Rubber Foam Insulation For the Cryogenic Equipment Systems Suppliers, Quotes

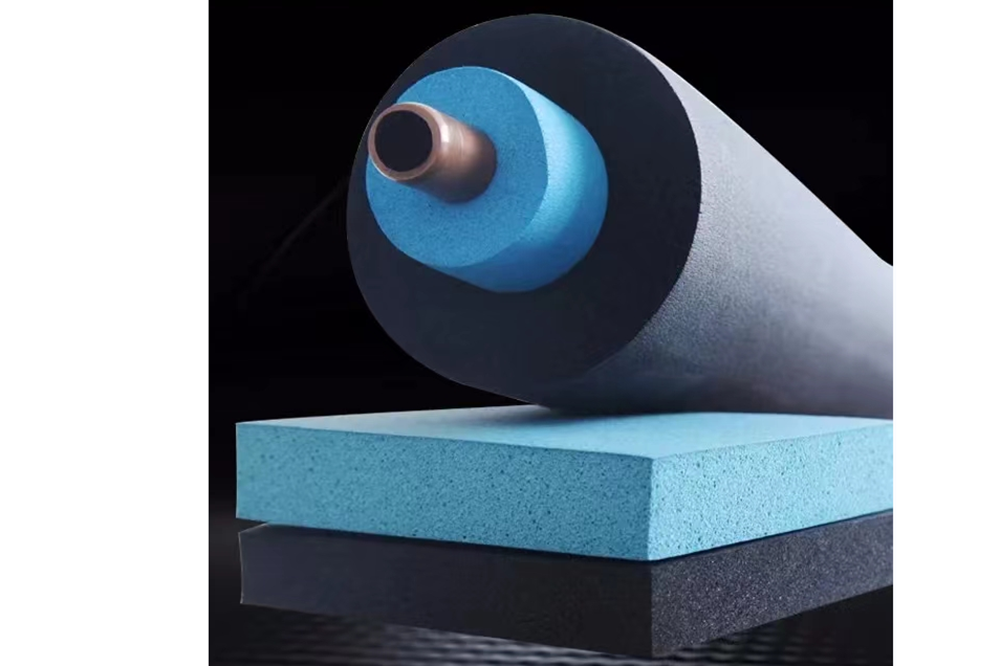

Multi-layer composite structure: ULT (Blue) for inner layer; LT (Black) for outer layer.
Main material: ULT—alkadiene polymer; color in Blue
LT—NBR/PVC; color in Black.
Insulation that maintains its flexibility at very low temperatures down to -200℃ to +125℃.
Reduces the risk of corrosion under insulation
Protects against mechanical impact and shock.
Low thermal conductivity
Low glass transition temperature
Easy installation even for complex shapes.
Cryogenic Rubber Foam is highly durable and resistant to wear and tear. It is resistant to moisture, chemicals, and UV radiation, making it suitable for use in both indoor and outdoor environments.
Dimension
Inches
mm
Size (L * W)
㎡/Roll
3/4"
20
10 × 1
10
1"
25
8 × 1
8
Main Property
Base material
Test Method
ULT
LT
Thermal Conductivity
-100°C, 0.028 -165°C, 0.021
0°C, 0.033 -50°C, 0.028
ASTM C177
Density Range
60-80Kg/m3
40-60Kg/m3
ASTM D1622
Recommend Operation Temperature
-200°C to 125°C
-50°C to 105°C
-
Percentage Of Close Areas
>95%
>95%
ASTM D2856
Moisture Performance Factor
NA
<1.96x10g(m.m.Pa)
ASTM E 96
Wet resistance Factor μ
NA
>10000
EN12086 EN13469
Water Vapor Permeability Coefficient
NA
0.0039g/h.m2 (25mm thickness)
ASTM E 96
PH
≥8.0
≥8.0
ASTM C871
Tensile Strength Mpa
-100°C, 0.30 -165°C, 0.25
0°C, 0.15 -50°C, 0.218
ASTM D1623
Compressive Strength Mpa
-100°C, ≤0.3
-40°C, ≤0.16
ASTM D1621
Frequently Asked Questions (FAQ)
Q What is the temperature range for Cryogenic Rubber Foam insulation?
Cryogenic Rubber Foam insulation provides exceptional thermal performance at very low temperatures, with a recommended operating temperature range from -200°C up to +125°C.
Q How does Cryogenic Rubber Foam protect against corrosion under insulation (CUI)?
It features a high percentage of closed-cell areas (>95%) that prevent moisture and chemicals from penetrating the insulation layer, significantly reducing the risk of corrosion under insulation.
Q Is this insulation material suitable for outdoor environments?
Yes, the material is highly resistant to moisture, chemical exposure, and UV radiation, making it ideal for both indoor industrial setups and demanding outdoor applications.
Q Can Cryogenic Rubber Foam handle mechanical impacts?
Yes, it retains its flexibility at extremely low temperatures, allowing it to act as a protective barrier that absorbs mechanical impacts and shocks, preventing physical damage to the piping systems.
Q Is the installation process difficult for complex shapes?
No, because of its low glass transition temperature and high inherent flexibility, the material is easy to cut, shape, and install, even on complex structures, valves, and elbows.
Q What are the standard dimensions available for these insulation rolls?
Standard options include thicknesses of 3/4" (20mm) and 1" (25mm), with dimensions of 10m x 1m (10 ㎡/roll) and 8m x 1m (8 ㎡/roll) respectively.
