China Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturers, Factory
China Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturers, Factory
China Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturers, Factory
1 / 3
China Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturers, Factory
China Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturers, Factory
China Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturers, Factory

China Cryogenic rubber foam insulation system for cryogenic pipeline Manufacturers, Factory

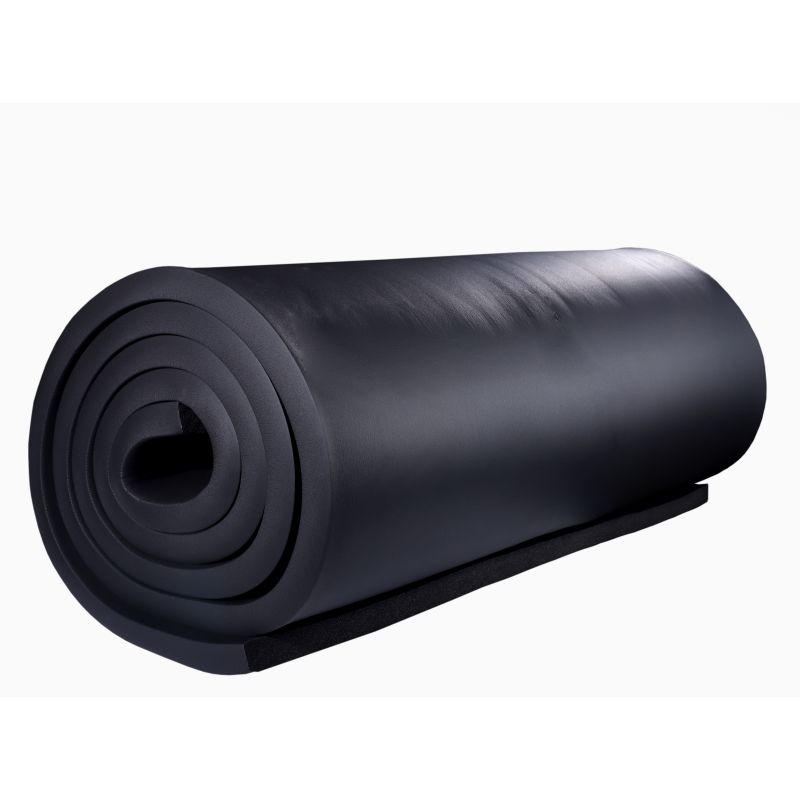

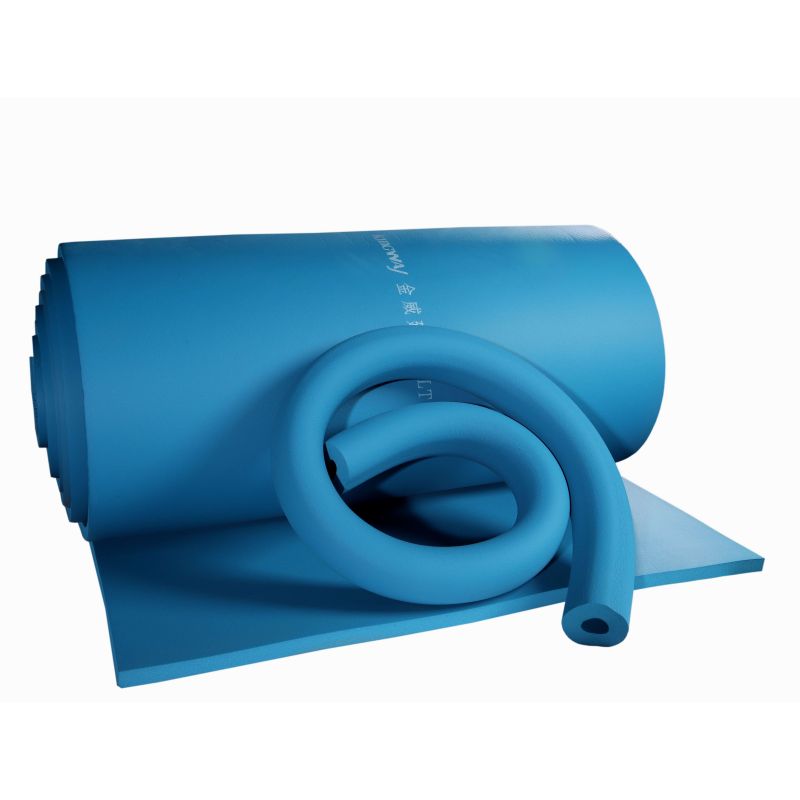

Kingflex ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam. The product has been specially developed for use on the import and export pipelines and process of facilities.
Send Inquiry

Product Description

Insulation Application
Insulation Testing
Insulation Material Details
Insulation Product View
  • Insulation that maintains its flexibility at very low temperatures down to -200℃ to +125℃.
  • Reduces the risk of crack development and propagation.
  • Low thermal conductivity.
  • Low glass transition temperature.
Thermal Performance

Our flexible ULT insulation system does not need to install a moisture barrier. Due to the unique closed cell structure and polymer blend formulation, LT low temperature elastomeric materials have been highly resistant to water vapor permeation. This foamed material provides continuous resistance to moisture penetration throughout the thickness of the product. This feature of the product greatly extends the life of the entire cold insulation system and significantly reduces the risk of corrosion of the pipes under the insulation.

Installation Process
Close-up View
Industrial Installation
ULT Technical Data
Property Unit Value
Temperature range °C -200 to +110
Density range Kg/m³ 60-80 Kg/m³
Thermal Conductivity W/(m.k) ≤0.028 (-100°C)
≤0.021 (-165°C)
Fungi resistance - Good
Ozone resistance - Good
Resistance to U.V. and weather - Good
Insulated Pipeline Section
Material Flexibility Test
Application Scene 1
Application Scene 2
Application Scene 3
Application Scene 4
Frequently Asked Questions
What is the temperature range for the flexible ULT insulation system?
The flexible ULT insulation system maintains its flexibility at extremely low temperatures, working efficiently within a temperature range down from -200°C up to +125°C.
Does this insulation system require a moisture barrier?
No. Due to its unique closed-cell structure and polymer blend formulation, the elastomeric material is highly resistant to water vapor permeation, eliminating the need to install an additional moisture barrier.
How does this product prevent pipeline corrosion?
The insulation provides continuous resistance to moisture penetration throughout its entire thickness. By keeping moisture away from the metal surfaces, it significantly reduces the risk of corrosion under insulation (CUI).
What are the thermal conductivity properties of the ULT insulation?
The material features low thermal conductivity, measuring ≤0.028 W/(m.k) at -100°C and ≤0.021 W/(m.k) at -165°C, ensuring high energy efficiency for cryogenic and low-temperature systems.
How does the insulation perform against environmental hazards?
The insulation exhibits excellent resistance to fungi, ozone, ultraviolet (U.V.) light, and weathering, ensuring long-term durability in both indoor and outdoor industrial environments.
