China Kingflex insulation tube adopts high-performance Manufacturer, Pricelist

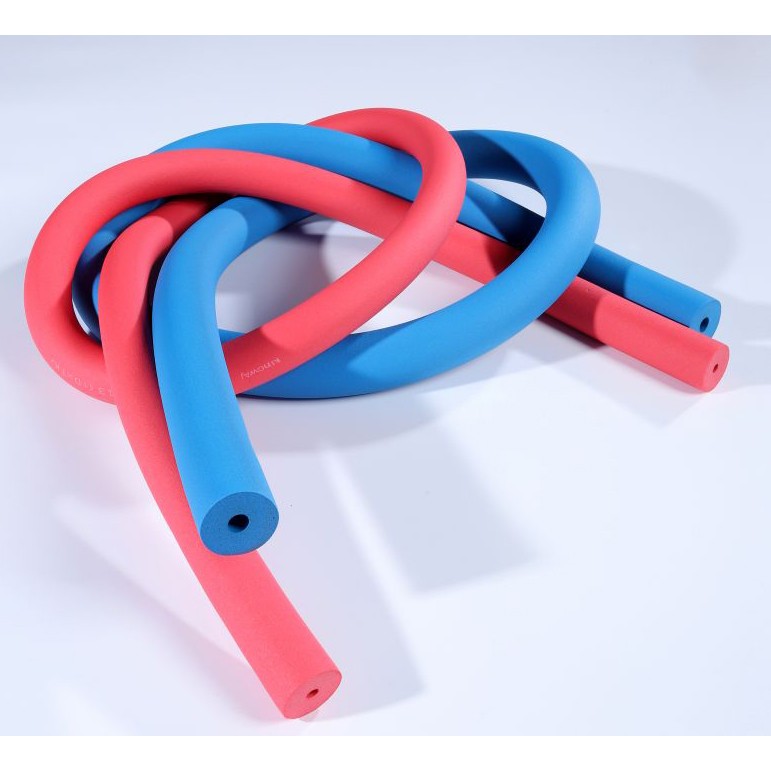

Kingflex insulation tube adopts high-performance NBR/PVC as the main raw material with various quality supplementary material by special frothing process to produce the soft energy conversation foam insulation.The insulation tubes are manufactured in various diameters and thickness for efficient and precise insulation application. Available colors: Black, Blue, Red.
It is widely used for the thermal insulation of various water and steam pipelines in the central air-conditioning freezer, building, ship, vehicle and other industries.
Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm).
Standard Length with 6ft (1.83m) or 6.2ft(2m).
The insulation tube has closed cell construction and has many great features such as soft resistance refractive index, cold resistance, fire-retardant, waterproof, low thermal conductivity, shock and sound absorption and so on. It can be widely used in large-scale central and home air conditioning, construction, chemicals, textile and electrical industries.
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m3
45-65Kg/m3
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM 21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
excellent thermal insulation- very low thermal conductivity
excellent acoustic insulation- can reduce noise and sound transmitting
What are the main features of the closed cell insulation tube?
The insulation tube offers features such as soft resistance refractive index, cold resistance, fire-retardancy, water resistance, low thermal conductivity, and excellent shock and sound absorption.
In which industries can this insulation tube be applied?
It is widely used in large-scale central and home air conditioning, construction, chemical processing, textile manufacturing, and various electrical industries.
What is the working temperature range for this insulation?
According to the technical data tested under GB/T 17794-1999, the safe operating temperature range for the insulation tube is from -50°C to 110°C.
How does the material perform in terms of thermal conductivity?
The material has very low thermal conductivity values: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, providing excellent thermal insulation performance.
Which international standards and certifications does this product meet?
This product is compliant and certified under BS476, UL94, DIN5510, ASTM-E84, CE, REACH, ROHS, and GB standards.
Does this insulation material provide good resistance to ozone and weather?
Yes, testing indicates good performance for fungi resistance (ASTM 21), ozone resistance (GB/T 7762-1987), and resistance to U.V. and weather conditions (ASTM G23).
