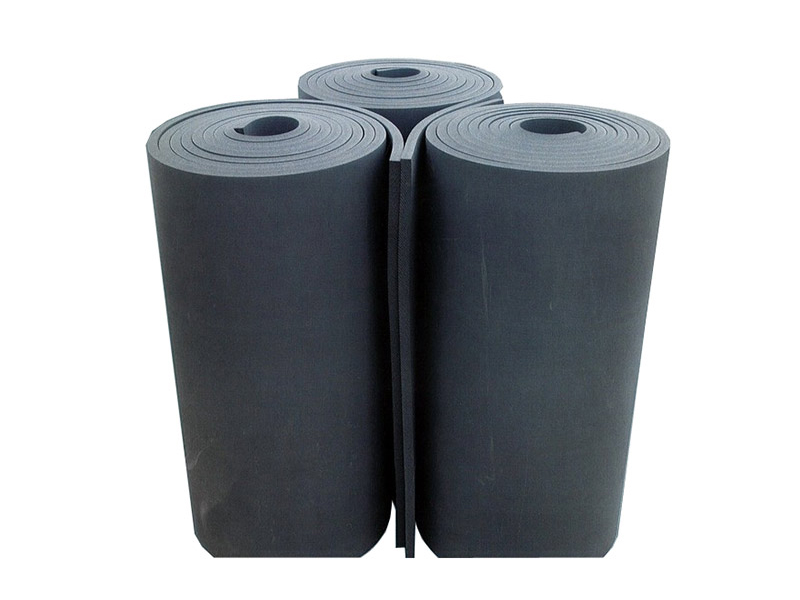

Elastomeric insulation sheet roll 13mm thickness is a flexible, closed-cell elastomeric sheet insulation product used to conserve energy and prevent condensation on large pipes, ducts (covers), vessels, tanks and equipment.
The Closed cell structure of the insulation sheet roll 13mm thickness creates exceptional thermal properties (k-value of 0.245 at 75°F and wvt of 0.03 perm-in) that protect against moisture penetration and heat loss or gain within a -297°F to +220°F temperature range.
The insulation Sheet Roll 13mm thickness is available with 1m, 1.2m and 1.5m width and thickness from 6mm to 30mm. It is non-porous, non-fibrous and resists mold, fungal and bacterial growth.
An easy-to-clean and uniquely tough protective skin on both sides provides a better surface to resist moisture and dirt. The double-sided skin can be used with either side facing away from the applied surface, resulting in less waste if one side becomes damaged.
Suitable apparent density and stable closed cell structure create the lowest and the most stable thermal conductivity.
Perfect closed cell structure brings low water absorption and high moisture resistance factor. The μ value fully promotes up to 10000, leading the industry.
Passed tests of BS 476 part 6 and part 7 (Class 0). It has achieved the highest fire certification of BS standard, controlling the balance of oxygen index and smoke density efficiently.
High tear strength prevents surface damage. It is highly flexible, making it easier to install without rebounding or leaving gaps at the joints.
Designed with eco-friendly chemical processes that contain no harmful fibers or dust, ensuring clean indoor and outdoor air quality.

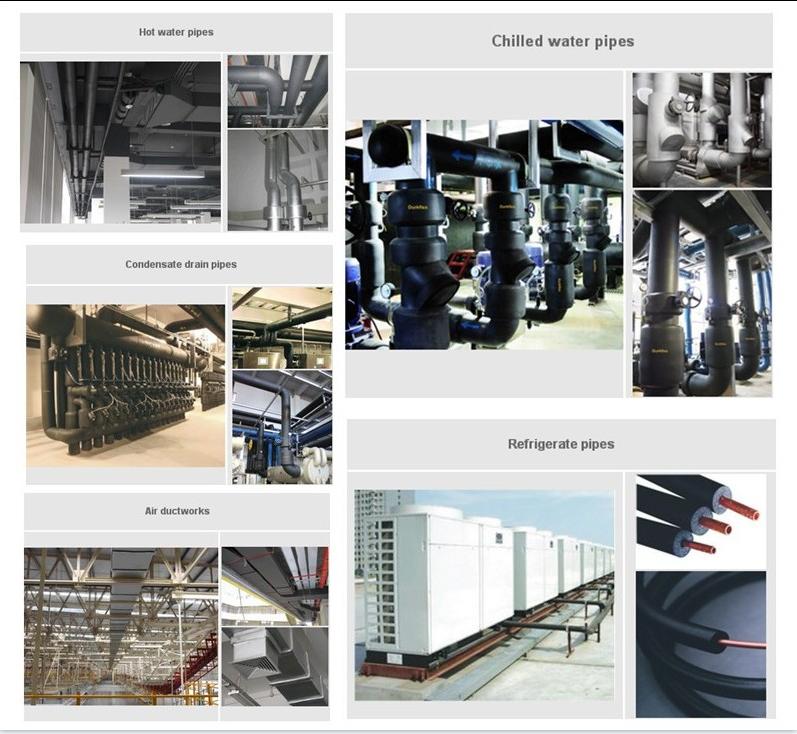

This flexible, closed-cell elastomeric sheet is ideal for conserving energy and preventing condensation on large pipes, air ducts (covers), vessels, tanks, and diverse industrial or HVAC equipment.
It operates exceptionally well within a wide temperature range from -297°F to +220°F, protecting against heat transfer and moisture penetration.
It has passed the stringent BS 476 part 6 and part 7 tests, earning a Class 0 rating. This indicates the highest level of fire protection standard under BS guidelines.
Yes, it features a non-porous and non-fibrous closed-cell design that naturally resists mold, fungal, and bacterial growth, with a tough protective skin on both sides to block dirt and moisture.
To calculate the necessary thickness, you must assess key variables: the operating temperature of the medium, the maximum expected ambient temperature, relative humidity of the environment, and the outer diameter of the equipment or pipe. This calculation prevents condensation and minimizes energy losses.
