Kingflex Noise Control System
Designed to minimise the risk of corrosion under insulation.
Combined thermal and noise reduction in a single solution.
Significant savings in installation and maintenance costs.

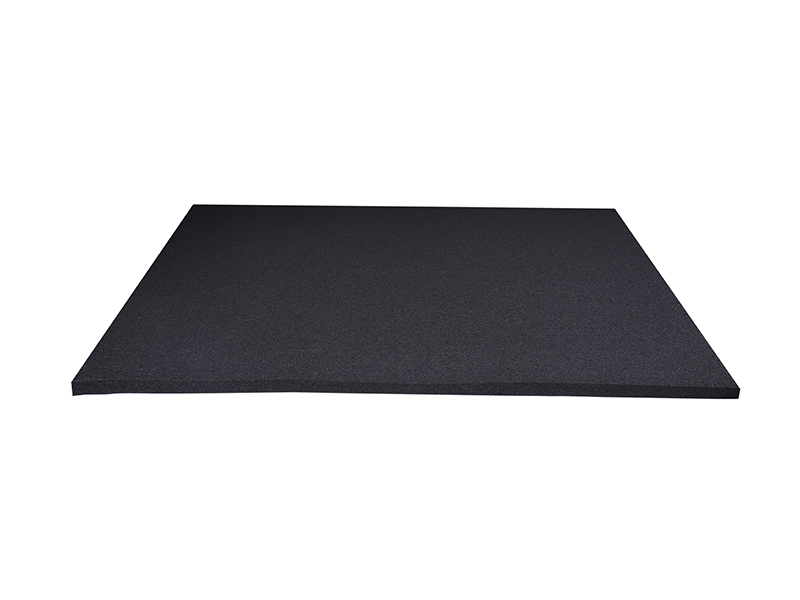

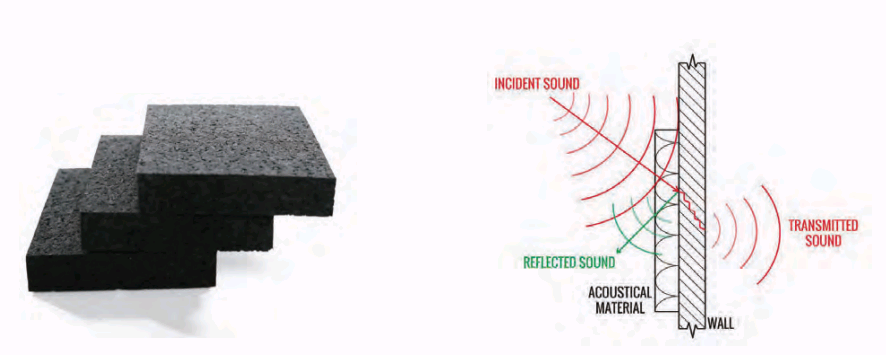

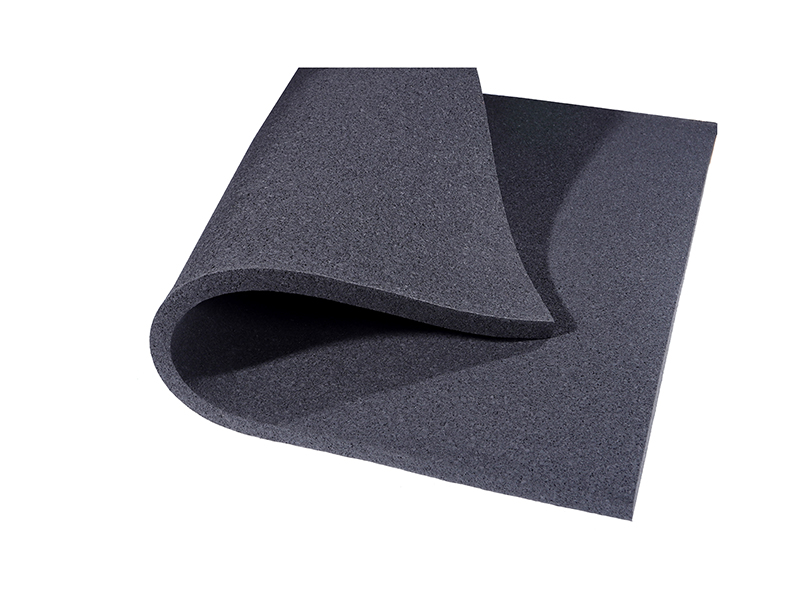

Kingflex flexible sound absorbing insulation sheet is a kind of universal sound absorbing material with open cell structure, designed for different acoustic application. Kingflex Acoustic Insulation is ideal for HVAC Ducts, Air Handling Systems, Plant Rooms, and Architectural Acoustics.
Excellent internal shock resistance.
Extensive absorption and dispersion of external stresses in local positions.
Avoid material cracking due to stress concentration.
Avoid the cracking of hard foamed material caused by impact.
Reduces duct and plant room noise substantially.
Quick and easy installation - no bitumen, tissue paper or perforated sheet required.
Non-fibrous, no fibre migration.
Extremely high noise absorption per unit thickness.
Built-in 'Microban' protection for product lifetime.
High density to dampen duct rattling & vibration.
Self extinguishing, does not drip and does not spread flames.
Fibre free, super silent, and microbe resistant.
| Technical Data of Kingflex Sound Absorbing Insulation Sheet | |||
|---|---|---|---|
| Physical Properties | Low Density | High Density | Standard |
| Temperature Range | -20℃ ~ +85℃ | -20℃ ~ +85℃ | - |
| Thermal Conductivity (Normal Atmospheric Temp.) | 0.047 W/(m.K) | 0.052 W/(m.K) | EN ISO 12667 |
| Fire Resistance | Class 1 | Class 1 | BS476 Part 7 |
| V0 | V0 | UL 94 | |
| Fireproof, Self-Extinguishing, No Drop, No Flame Propagation | Fireproof, Self-Extinguishing, No Drop, No Flame Propagation | - | |
| Density | ≥160 KG/M³ | ≥240 KG/M³ | - |
| Tensile Strength | 60-90 kPa | 90-150 kPa | ISO 1798 |
| Stretch Rate | 40-50% | 60-80% | ISO 1798 |
| Chemical Tolerance | Good | Good | - |
| Environmental Protection | No Fiber Dust | No Fiber Dust | - |
| No | Thickness | Width | Length | Density | Unit Packing | Size of Carton Box | |
|---|---|---|---|---|---|---|---|
| 1 | 6mm | 1m | 1m | 160KG/M³ | 8 | PC/CTN | 1030mm x 1030mm x 55mm |
| 2 | 10mm | 1m | 1m | 160KG/M³ | 5 | PC/CTN | 1030mm x 1030mm x 55mm |
| 3 | 15mm | 1m | 1m | 160KG/M³ | 4 | PC/CTN | 1030mm x 1030mm x 65mm |
| 4 | 20mm | 1m | 1m | 160KG/M³ | 3 | PC/CTN | 1030mm x 1030mm x 65mm |
| 5 | 25mm | 1m | 1m | 160KG/M³ | 2 | PC/CTN | 1030mm x 1030mm x 55mm |
| 6 | 6mm | 1m | 1m | 240KG/M³ | 8 | PC/CTN | 1030mm x 1030mm x 55mm |
| 7 | 10mm | 1m | 1m | 240KG/M³ | 5 | PC/CTN | 1030mm x 1030mm x 55mm |
| 8 | 15mm | 1m | 1m | 240KG/M³ | 4 | PC/CTN | 1030mm x 1030mm x 65mm |
| 9 | 20mm | 1m | 1m | 240KG/M³ | 3 | PC/CTN | 1030mm x 1030mm x 65mm |
| 10 | 25mm | 1m | 1m | 240KG/M³ | 2 | PC/CTN | 1030mm x 1030mm x 55mm |
It combines thermal insulation and noise reduction in a single solution, minimizes the risk of corrosion under insulation (CUI), and offers significant savings in installation and maintenance costs.

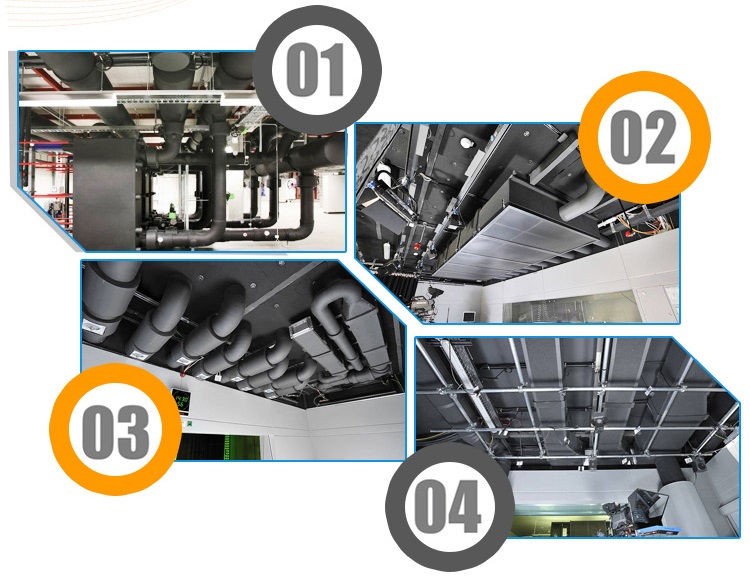

It is designed for various acoustic applications, particularly in HVAC ducts, air handling systems, plant rooms, and architectural acoustics.
It meets Class 1 (BS476 Part 7) and V0 (UL 94) fire safety standards. The material is fireproof, self-extinguishing, does not drip, and prevents flame propagation.
No, Kingflex sound absorbing insulation is completely fiber-free, ensuring no fiber dust or fiber migration during use.
Both the low-density and high-density Kingflex sound absorbing sheets are designed to operate safely within a temperature range of -20℃ to +85℃.
Yes, it features built-in Microban protection for the product lifetime, making it highly microbe-resistant.
