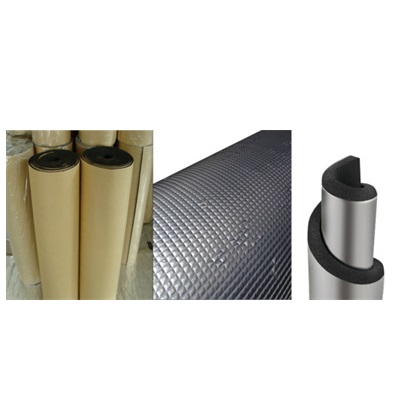

China Kingflex Rubber Foam Insulation Sheet Roll with Aluminum Foil and Self-adhesive both sides facing Factory, Quotes
Kingflex Rubber Foam Insulation Sheet Roll with Aluminum Foil and Self-adhesive both sides facing are produced by imported high-end technology and automatic continuous equipment. We have developed a rubber foam insulation material with excellent performance through in-depth research.
Kingflex Rubber Foam Insulation Sheet Roll with Aluminum Foil and Self-adhesive both sides facing is supplied in flat sheets and packed in sheets with width 40” (1m), in nominal thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm).
Kingflex Rubber Foam Insulation Sheet Roll with Aluminum Foil and Self-adhesive both sides facing is supplied in 40” to 59″ wide (1m to 1.5m) continuous rolls in nominal wall thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm ).
Good flexibility, strong tear strength & high elasticity
Smooth surface, no formaldehyde, shock & sound absorption
Certifications & Standards
BS476UL94CEAS1530DINREACHRoHS
Frequently Asked Questions
QWhat is the temperature range capability of these insulation products?
According to the technical testing standard GB/T 17794-1999, the insulation materials have a reliable operating temperature range from -50°C to 110°C.
QHow does the thermal conductivity perform at different temperatures?
Per ASTM C 518 standards, the thermal conductivity values are ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, ensuring excellent thermal efficiency.
QWhat fire safety certifications do the insulation products hold?
The insulation products achieve a Class 0 and Class 1 rating under BS 476 Part 6 & Part 7, and have a Flame Spread and Smoke Developed Index of 25/50 in compliance with ASTM E 84.
QDoes the material resist moisture and water absorption?
Yes. The material features close and even bubble structures offering extremely low water vapor transmissibility (≤0.91×10⁻¹³ Kg/(m.s.pa)) and water absorption of 20% by volume tested under ASTM C 209.
QAre the insulation materials resistant to environmental factors like U.V. and fungi?
Yes, they demonstrate good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and U.V. and weather exposure (ASTM G23), guaranteeing high durability over time.
