China Kingflex green corlor rubber foam insulation sheet roll Suppliers, Quotes

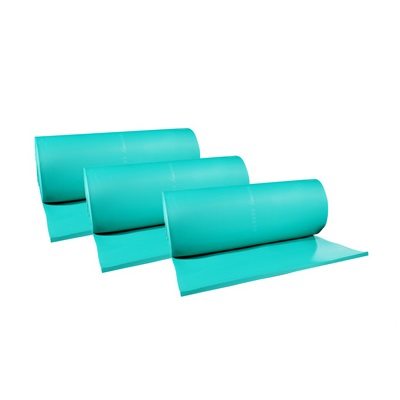

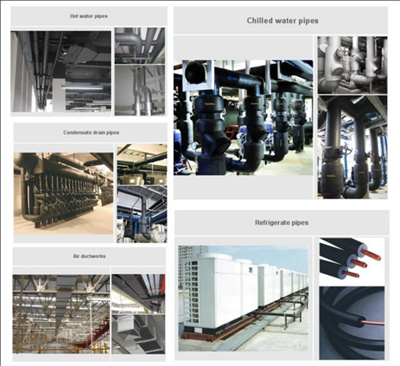

Kingflex green corlor rubber foam insulation sheet roll is made of nitrile-butadiene rubber (NBR) and polyvinyl chloride(PVC) as main raw material and other high quality auxiliary materials through foaming, which is closed cell elastermic material, fire resistance, UV-anti and environmental friendly. It can be widely used for air condition, construction, chemical industry, medicine, light industry and so on. More pleasant to look at than traditional black color.

l Kingflex green corlor rubber foam insulation sheet roll is supplied in flat sheets and packed in sheets with width 40” (1m), in nominal thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm).
l Kingflex green corlor rubber foam insulation sheet roll is supplied in 40” to 59″ wide (1m to 1.5m) continuous rolls in nominal wall thicknesses of 1/8″, 1/4″, 3/8″, 1/2″, 5/8”, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2″ (3, 6, 9, 13, 16, 19, 25, 32, 40, and 50mm ).

Send Inquiry

Product Description

Insulation Roll Dimensions

Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll
1/4"	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8"	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2"	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4"	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1"	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4"	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2"	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2"	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

Insulation Technical Specifications

Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10⁻¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Frequently Asked Questions

QWhat is the operating temperature range for this insulation?

This insulation material is engineered to perform reliably across a temperature range of -50°C to 110°C, tested in compliance with the GB/T 17794-1999 standard.

QWhat thicknesses and roll sizes are available?

The insulation is available in various thicknesses ranging from 1/4" (6mm) to 2" (50mm). Roll widths come in standard 1m, 1.2m, and 1.5m configurations, with lengths tailored to optimize total area coverage per roll.

QHow does the thermal conductivity vary with temperature?

Thermal conductivity remains exceptionally low to prevent heat transfer: ≤0.030 W/(m.k) at -20°C, ≤0.032 W/(m.k) at 0°C, and ≤0.036 W/(m.k) at 40°C, measured using the ASTM C 518 standard.

QWhat fire safety standards does this material meet?

The material achieves a Class 0 & Class 1 fire rating (BS 476 Part 6 & 7). Additionally, it complies with the ASTM E 84 standard with a Flame Spread / Smoke Developed Index of 25/50, and has an Oxygen Index of ≥36.

QDoes the material resist moisture and weathering?

Yes, it features excellent resistance to water vapor (permeability ≤0.91×10⁻¹³ Kg/(m.s.pa), μ ≥10000) and displays high resilience to environmental factors including fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weather exposure (ASTM G23).
