| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
|---|---|---|---|---|---|---|---|
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m3 | 45-65Kg/m3 | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| Thermal Conductivity | W/(m.k) | ≤0.032 (0°C) | ASTM C 518 |
| Thermal Conductivity | W/(m.k) | ≤0.036 (40°C) | ASTM C 518 |
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | - | Good | GB/T 7762-1987 |
| Resistance to U.V. and weather | - | Good | ASTM G23 |

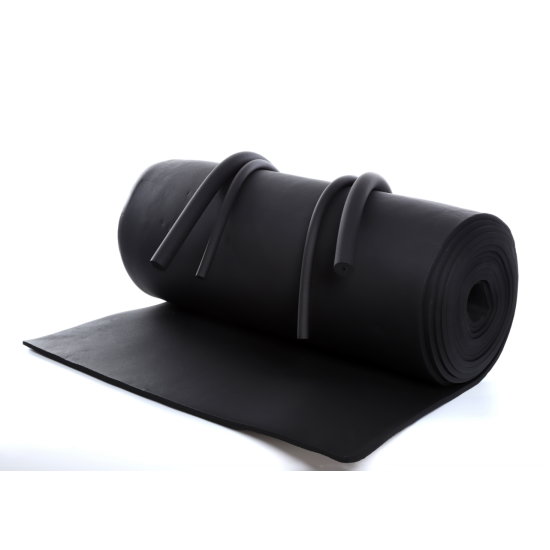

The rubber insulation rolls come in thicknesses ranging from 1/4" (6mm) up to 2" (500mm). The standard width options are 1m, 1.2m, and 1.5m, with varying lengths to yield coverage from 4 to 45 square meters per roll depending on the thickness.
This insulation material functions reliably within a temperature range of -50°C to 110°C, making it highly effective for both extreme heating and cooling applications.
With a water vapor permeability rating of ≤0.91×10 ﹣¹³ Kg/(m.s.pa), the material acts as an excellent moisture barrier, preventing condensation build-up and ensuring long-lasting thermal efficiency.
The product holds a Class 0 and Class 1 fire rating in compliance with BS 476 Part 6 & Part 7, and meets the 25/50 Flame Spread and Smoke Developed Index standards of ASTM E 84.
Yes, it demonstrates high resistance to fungi growth (ASTM 21), ozone (GB/T 7762-1987), and weathering/U.V. radiation (ASTM G23), ensuring high durability even in harsh outdoor environments.
According to ASTM D1667 test standards, the density range is 45-65Kg/m³, providing optimal balance between structural stability and flexibility.
