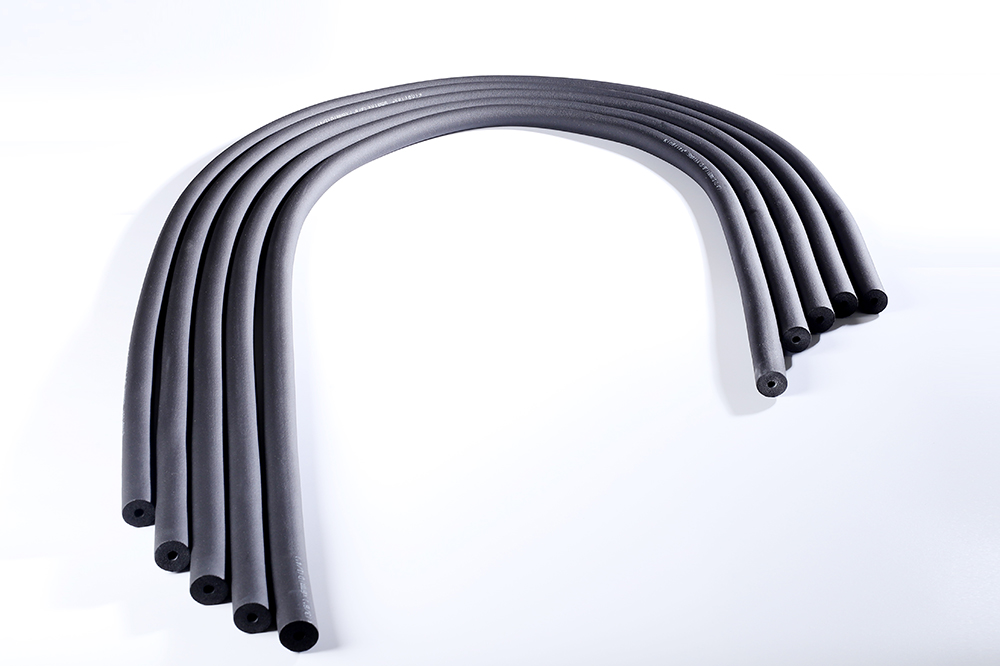

Wholesale Kingflex rubber plastic foam insulation tube Manufacturer, Factory

Kingflex rubber plastic foam insulation tube is made from the nitrile-butadiene rubber (NBR) and polyvinyl chloride(PVC) as main raw material and other high quality auxiliary materials through foaming, which is closed cell elastomeric material, fire resistance, UV-anti and environmental friendly. It can be widely used for air condition, construction, chemical industry, medicine, light industry and so on. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Insulation Material Overview
Production Process
Insulation Tube Details
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10⁻¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Thermal Insulation Application
Insulation Materials Close-up
High Quality Pipes
Insulation Structure Specification
Closed Cell Rubber Foam
Insulated Pipeline System
Factory Testing
Low Conductivity & Heat Conductivity
Optimized structural design to prevent heat transfer and improve energy efficiency.
Closed Cell Pipe Insulation
Characterized by a totally closed cell structure and based on high synthetic rubber for ultimate moisture resistance.
Aesthetic and Protective Application
Rubber foam pipes play a decorative role on pipes and equipment. The appearance is smooth, flat, and overall beautiful.
Excellent Fireproof & Safety Rating
Made of NBR and PVC. Contains zero fibrous dust, benzaldehyde, or Chlorofluorocarbons. Offers low conductivity and high fire resistance.
Flexible Specifications & Multi-use
Different sizes are available according to customer requirements. Widely used for the insulation of pipework and ducting.
Installation Display
Finished Projects
Frequently Asked Questions
What materials are used to manufacture these insulation pipes?
The insulation tubes are made from a high-quality blend of NBR (Nitrile Butadiene Rubber) and PVC. This formulation ensures they do not contain fibrous dust, benzaldehyde, or chlorofluorocarbons.
What temperature range can this insulation material withstand?
According to the technical standards (GB/T 17794-1999), the material has a stable operating temperature range from -50°C to 110°C.
What are the fire safety ratings of this product?
The insulation features a Class 0 and Class 1 fire rating tested according to BS 476 Part 6 and Part 7. It also has a Flame Spread and Smoke Developed Index of 25/50 per ASTM E 84.
Does the insulation resist moisture and environmental degradation?
Yes. Thanks to its totally closed cell structure, the material displays excellent water vapor permeability resistance (μ ≥ 10000) and offers good resistance to fungi, ozone, U.V., and weathering.
Are customized sizes available for specific projects?
Yes, we provide different sizes according to the customer's specific requirements, making them ideal for a wide variety of pipework and ducting insulation applications.
