Wholesale Alkadiene Rubber Foam Insulation For the ULT Systems Supplier, Pricelist
Wholesale Alkadiene Rubber Foam Insulation For the ULT Systems Supplier, Pricelist
1 / 2
Wholesale Alkadiene Rubber Foam Insulation For the ULT Systems Supplier, Pricelist
Wholesale Alkadiene Rubber Foam Insulation For the ULT Systems Supplier, Pricelist

Wholesale Alkadiene Rubber Foam Insulation For the ULT Systems Supplier, Pricelist

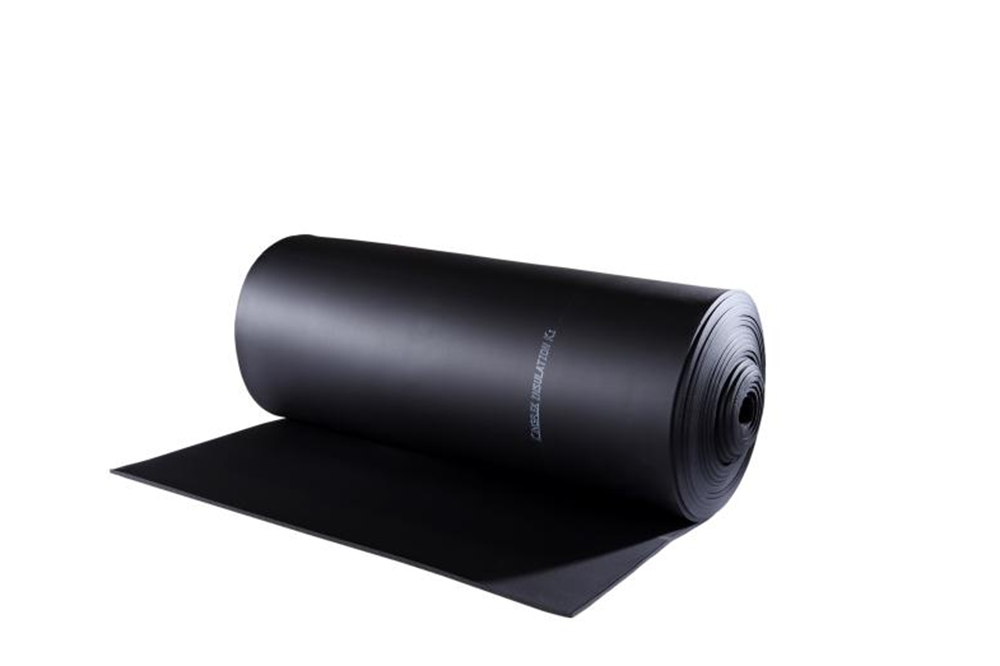

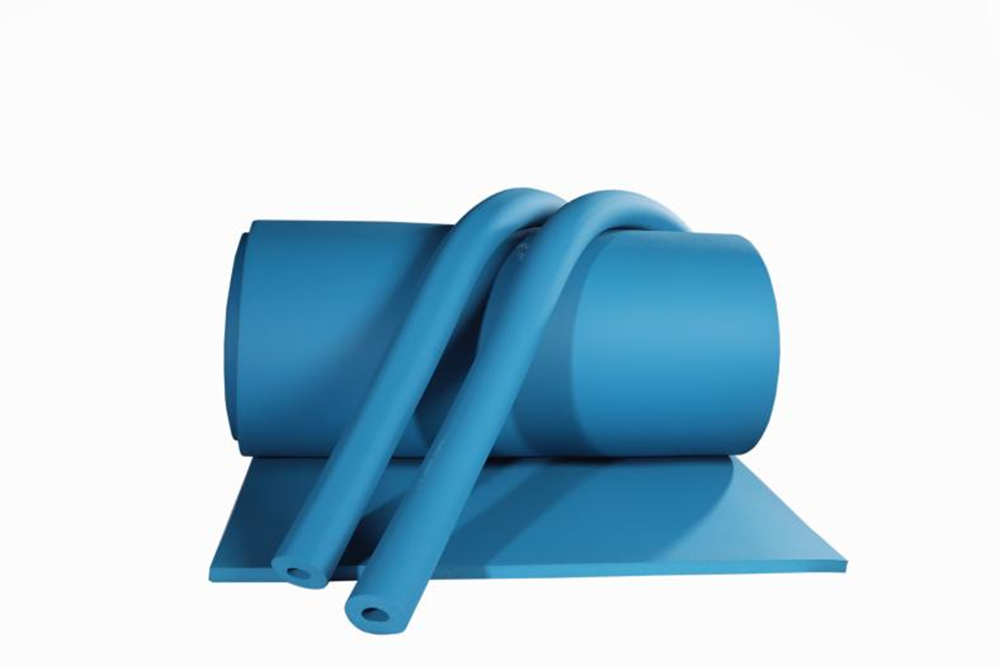

Main raw material: ULT alkadiene polymer; LT：NBR/PVC Color: ULT Blue; LT Black Temperature range: -200℃ to +200℃ for LNG/cold pipeline or equipment application.
Send Inquiry

Product Description

Insulation Material Display 1
Insulation Material Display 2
Insulation Material Display 3
Production Process 1
Production Process 2
Production Process 3
Product Application 1
Product Application 2
Product Application 3
The flexible ultra low temperature adiabatic system has the inherent characteristics of impact resistance, and its cryogenic elastomer material can absorb the impact and vibration energy caused by the external machine to protect the system structure.
Technical Drawing 1
Technical Drawing 2
Main Property Base material Standard
ULT LT Test Method
Thermal Conductivity -100°C, 0.028
-165°C, 0.021		 0°C, 0.033
-50°C, 0.028		 ASTM C177
Density Range 60-80Kg/m3 40-60Kg/m3 ASTM D1622
Recommend Operation Temperature -200°C to 125°C -50°C to 105°C -
Percentage Of Close Areas >95% >95% ASTM D2856
Moisture Performance Factor NA <1.96x10g(m.m.Pa) ASTM E 96
Wet resistance Factor μ NA >10000 EN12086
EN13469
Water Vapor Permeability Coefficient NA 0.0039g/h.m2
(25mm thickness)		 ASTM E 96
PH ≥8.0 ≥8.0 ASTM C871
Tensile Strength Mpa -100°C, 0.30
-165°C, 0.25		 0°C, 0.15
-50°C, 0.218		 ASTM D1623
Compressive Strength Mpa -100°C, ≤0.3 -40°C, ≤0.16 ASTM D1621
Application Scope
Coal chemical MOT
Low temperature storage tank
FPSO floating production storage oil unloading
Industrial gas & chemical plants
Platform Pipe
Industrial Manufacturing Facility
With 5 large automatic assembly lines and more than 600,000 cubic meters of annual production capacity, the enterprise is specified as the designated production entity of thermal insulation materials for major national energy departments, the ministry of electric power, and the chemical industry.
Over four decades, the insulation manufacturing network has grown from a single facility to a global supplier with product installations in over 50 countries. From prestigious national stadiums to high-rises in New York, Singapore, and Dubai, global projects benefit from these premium insulation products.
Frequently Asked Questions
What is the recommended operating temperature range for the ULT and LT systems?
The ULT (Ultra Low Temperature) base material has a recommended operating temperature range of -200°C to 125°C, while the LT (Low Temperature) system ranges from -50°C to 105°C.
How does the cryogenic elastomer material protect the system structure?
Due to its inherent impact resistance characteristics, the cryogenic elastomer material is designed to absorb impact and vibration energy generated by external machinery, thereby protecting the overall system structure.
What is the percentage of closed cell area for these materials?
Both the ULT and LT base materials feature a closed cell structure of greater than 95% (tested under ASTM D2856), ensuring high resistance to moisture and thermal transfer.
What is the thermal conductivity of the ULT material at cryogenic temperatures?
According to ASTM C177 standards, the ULT material has a thermal conductivity of 0.028 W/(m·K) at -100°C and decreases to 0.021 W/(m·K) at -165°C.
Where are these adiabatic and insulation systems commonly applied?
These systems are widely used in low-temperature environments including coal chemical MOT, low-temperature storage tanks, FPSO unloading systems, platform piping, and industrial gas or agricultural chemical production plants.
