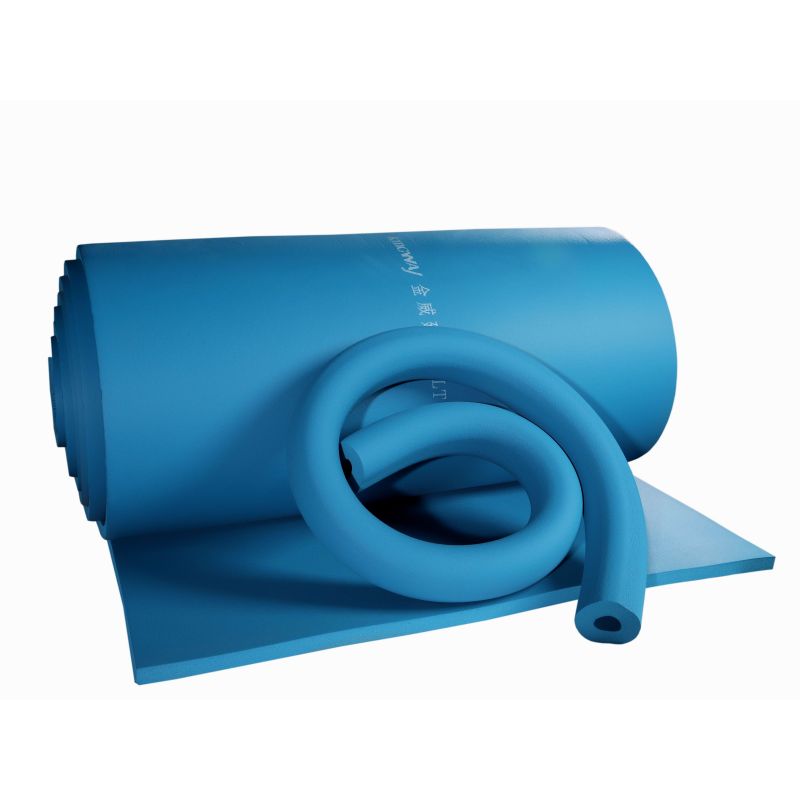

Wholesale Cryogenic insulation system for Ultra Low Temperature project Suppliers, Factory

Temperature range: -200℃ to +125℃ for LNG/cold pipeline or equipment application Main raw material: ULT: alkadiene polymer; LT: NBR/PVC Color: ULT is blue; LT is black.

Product Description

Cryogenic thermal insulation application
Cryogenic insulation pipeline
Ultra low temperature insulation detail
Pipeline insulation project
Applications & Scope
Coal chemical MOT
Low temperature storage tank
FPSO floating production storage oil unloading device
Industrial gas and agricultural chemical production plants
Platform pipe
Gas station
Ethylene pipe
LNG
Nitrogen plant
Ultra low temperature flexible insulation

Kingflex flexible ultra-low temperature insulation system is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam. The product has been specially developed for use on the import and export pipelines and process areas of liquefied natural gas (LNG) facilities. It is part of Kingflex Cryogenic multi layer configuration, providing low temperature flexibility to the system.

Cryogenic insulation material structure
Multi layer insulation application
Cold insulation piping
Technical Specification
Kingflex ULT Technical Data
Property Unit Value
Temperature range °C -200 to +110
Density range Kg/m³ 60 - 80
Thermal Conductivity W/(m.k) ≤0.028 (-100°C)
≤0.021 (-165°C)
Fungi resistance - Good
Ozone resistance - Good
Resistance to U.V. and weather - Good
Thermal insulation details
Cryogenic piping setup
Insulated system components
Installation process of insulation
Protective wrap for cryogenic pipe
Completed insulation pipe segment
Frequently Asked Questions
What is the operating temperature range of Kingflex ULT?
The operating temperature range is -200°C to +110°C, making it highly effective for ultra-low temperature cryogenic environments.
Is the material resistant to weather and UV exposure?
Yes, the material exhibits good resistance to ozone, UV radiation, weathering, and fungi growth, which ensures long-term outdoor performance.
What is the thermal conductivity rating of this insulation?
The thermal conductivity is ≤0.028 W/(m.k) at -100°C and decreases to ≤0.021 W/(m.k) at -165°C, ensuring optimal energy conservation.
Where is this insulation system typically applied?
It is designed for LNG pipelines, low temperature storage tanks, FPSO systems, ethylene pipes, platform pipes, and industrial gas installations.
How does its closed-cell design benefit cryogenic applications?
The high-density closed-cell structure prevents moisture ingress, minimizes thermal bridges, and maintains structural integrity in cryogenic states.
