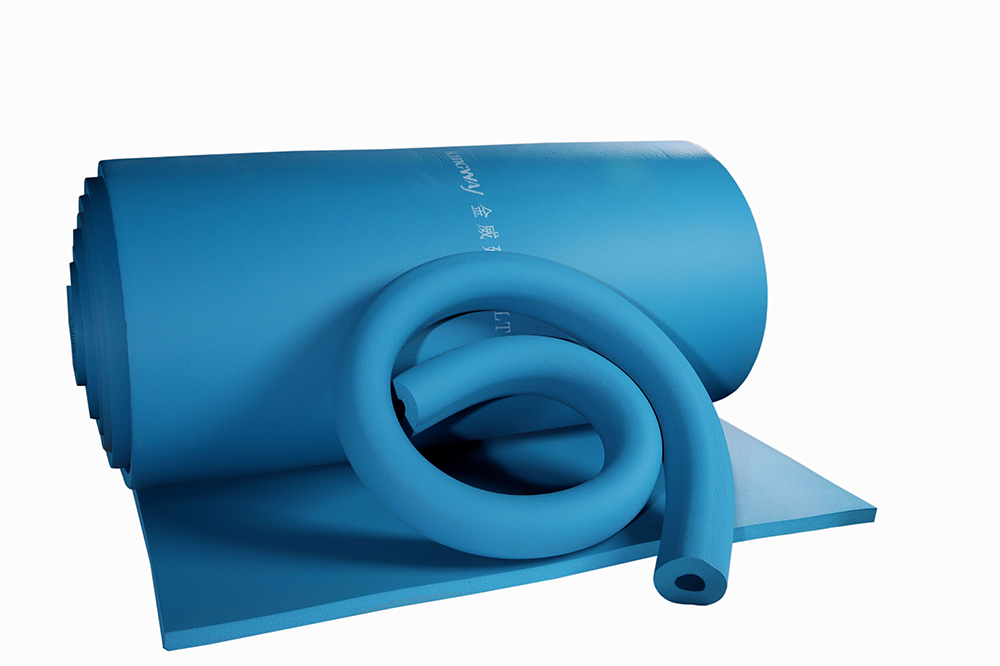

Wholesale Dienes Rubber Foam Insulation For the Cryogenic Systems Supplier, Suppliers
1 / 1
Wholesale Dienes Rubber Foam Insulation For the Cryogenic Systems Supplier, Suppliers

Wholesale Dienes Rubber Foam Insulation For the Cryogenic Systems Supplier, Suppliers

These are flexible, closed-cell, rubber foams based on dienes rubber. Flexible elastomeric foams exhibit such a high resistance to the passage of water vapour that they do not generally require additional water-vapour barriers. Such high vapour resistance, combined with the high surface emissivity of rubber, allows flexible elastomeric foams to prevent surface condensation formation with comparatively small thicknesses.
Send Inquiry

Product Description

Insulation Material Graph 1
Insulation Material Graph 2
Insulation Material Graph 3
  • Insulation that maintains its flexibility at very low temperatures down to -200℃ to +125℃.
  • Low thermal conductivity.

Kingflex Cryogenic Rubber Foam is highly durable and resistant to wear and tear. It is resistant to moisture, chemicals, and UV radiation, making it suitable for use in both indoor and outdoor environments.

Product Spec 1
Product Spec 2
Product Spec 3
Product Spec 4
Product Spec 5
Product Spec 6
Product Spec 7
Kingflex Dimension
Inches mm Size (L * W) ㎡ / Roll
3/4" 20 10 × 1 10
1" 25 8 × 1 8
Main Property Base Material Standard / Test Method
Kingflex ULT Kingflex LT
Thermal Conductivity -100°C, 0.028
-165°C, 0.021		 0°C, 0.033
-50°C, 0.028		 ASTM C177
Density Range 60-80 Kg/m³ 40-60 Kg/m³ ASTM D1622
Recommend Operation Temperature -200°C to 125°C -50°C to 105°C -
Percentage Of Close Areas >95% >95% ASTM D2856
Moisture Performance Factor NA < 1.96x10g(m.m.Pa) ASTM E 96
Wet Resistance Factor μ NA >10000 EN12086 / EN13469
Water Vapor Permeability Coefficient NA 0.0039g/h.m² (25mm thickness) ASTM E 96
PH ≥8.0 ≥8.0 ASTM C871
Tensile Strength Mpa -100°C, 0.30
-165°C, 0.25		 0°C, 0.15
-50°C, 0.218		 ASTM D1623
Compressive Strength Mpa -100°C, ≤0.3 -40°C, ≤0.16 ASTM D1621
Application 1
Application 2
Frequently Asked Questions
What is the temperature range for Kingflex Cryogenic Rubber Foam?
Kingflex Cryogenic Rubber Foam provides exceptional thermal performance at extreme temperatures. Kingflex ULT is designed for temperatures ranging from -200°C to 125°C, while Kingflex LT operates effectively between -50°C to 105°C.
Does this cryogenic foam maintain its flexibility in extreme cold?
Yes, one of the primary features of Kingflex Cryogenic Rubber Foam is its ability to maintain high flexibility at very low temperatures down to -200°C, preventing cracking and structural failure.
How does the insulation perform against moisture and chemicals?
With a closed-cell structure of over 95%, it provides excellent resistance to moisture absorption, water vapor permeability, chemicals, and UV radiation, making it suitable for both harsh indoor and outdoor environments.
What are the standard sizes and dimensions available?
The product comes in rolls with standard sizes. These include 3/4" (20mm thickness) rolls measuring 10m x 1m (10㎡ per roll), and 1" (25mm thickness) rolls measuring 8m x 1m (8㎡ per roll).
What is the thermal conductivity of Kingflex ULT?
Kingflex ULT has a thermal conductivity rating of 0.028 W/(m·K) at -100°C and 0.021 W/(m·K) at -165°C under the ASTM C177 test method, ensuring optimal energy savings.
Is the material environmentally stable and corrosion-resistant?
Yes, it has a neutral to slightly alkaline pH value of ≥8.0 (tested under ASTM C871), which helps prevent corrosion under insulation (CUI) on copper or steel piping.
