Wholesale Elastomeric Insulation For the Ultra Low Temperature Systems Supplier, Factories
1 / 1
Wholesale Elastomeric Insulation For the Ultra Low Temperature Systems Supplier, Factories

Wholesale Elastomeric Insulation For the Ultra Low Temperature Systems Supplier, Factories

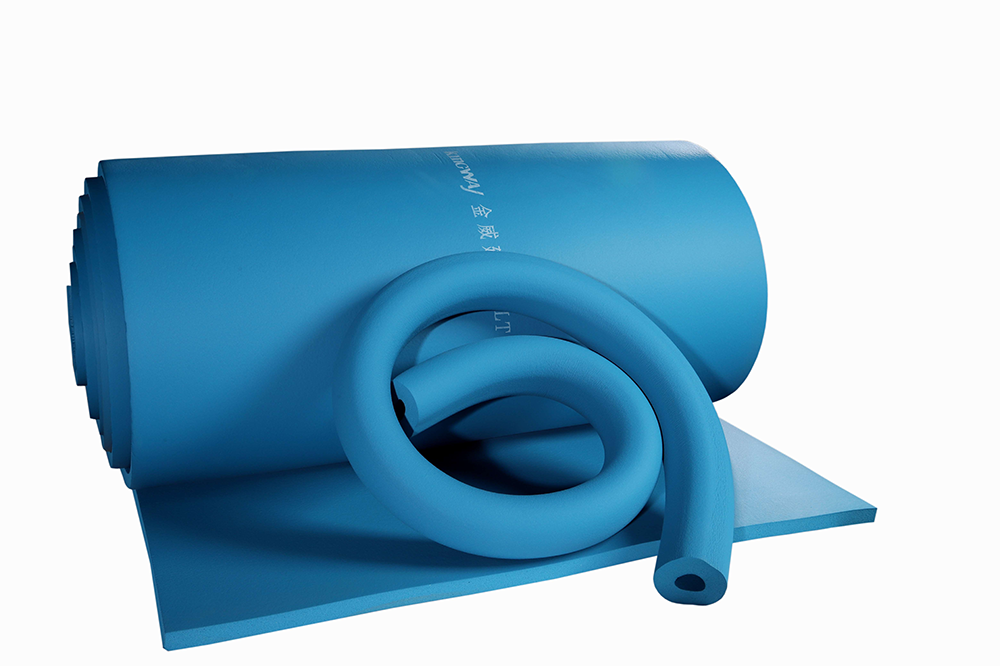

Kingflex ULT is a flexible, high density and mechanically robust, closed cell cryogenic thermal insulation material based on extruded elastomeric foam.
Send Inquiry

Product Description

Cryogenic Insulation Component 1
Cryogenic Insulation Component 2
Cryogenic Insulation Component 3
Scope of Application
Coal chemical MOT
Low temperature storage tank
FPSO floating production storage oil unloading device
Industrial gas and agricultural chemical production plants
Platform pipe
Gas station
Ethylene pipe
LNG
Nitrogen plant
The product has been specially developed for use on the import or export pipelines and process areas of (liquefied natural gas) facilities. It is a part of Cryogenic multi layer configuration, providing low temperature flexibility to the system.
Application Detail 1
Application Detail 2
Application Detail 3
Application Detail 4
Application Detail 5
Application Detail 6
Application Detail 7
Dimension Specifications
Inches mm Size(L*W) ㎡/Roll
3/4" 20 10 × 1 10
1" 25 8 × 1 8
Main Property Base material Standard / Test Method
ULT Model LT Model
Thermal Conductivity -100°C, 0.028
-165°C, 0.021		 0°C, 0.033
-50°C, 0.028		 ASTM C177
Density Range 60-80Kg/m³ 40-60Kg/m³ ASTM D1622
Recommend Operation Temperature -200°C to 125°C -50°C to 105°C -
Percentage Of Close Areas >95% >95% ASTM D2856
Moisture Performance Factor NA <1.96x10g(m.m.Pa) ASTM E 96
Wet resistance Factor μ NA >10000 EN12086
EN13469
Water Vapor Permeability Coefficient NA 0.0039g/h.m²
(25mm thickness)		 ASTM E 96
PH ≥8.0 ≥8.0 ASTM C871
Tensile Strength Mpa -100°C, 0.30
-165°C, 0.25		 0°C, 0.15
-50°C, 0.218		 ASTM D1623
Compressive Strength Mpa -100°C, ≤0.3 -40°C, ≤0.16 ASTM D1621
Property Graphic 1
Property Graphic 2
Frequently Asked Questions
Q What applications are these cryogenic insulation products designed for?
They are developed for import/export pipelines and process areas of LNG facilities, coal chemical MOT, low temperature storage tanks, FPSO systems, ethylene pipes, platform pipes, gas stations, industrial gas plants, and nitrogen plants.
Q What is the operating temperature range for the ULT and LT insulation models?
The ULT model has a recommended operating temperature of -200°C to 125°C, while the LT model is designed for operations between -50°C to 105°C.
Q How do the density ranges compare between the ULT and LT models?
The density range for the ULT model is 60-80 Kg/m³, whereas the LT model features a lighter density range of 40-60 Kg/m³.
Q What testing standard is used to measure the thermal conductivity?
The thermal conductivity of these materials is measured and verified in accordance with the ASTM C177 test method.
Q Does this insulation configuration provide flexibility at low temperatures?
Yes, it is designed as a multi-layer configuration specifically to provide low temperature flexibility, which helps support the structural integrity of LNG process systems.
