Wholesale KingFlex 6mm-40mm thick Fire Retardant Nitrile Foam Insulation Tube Manufacturer, Quotes

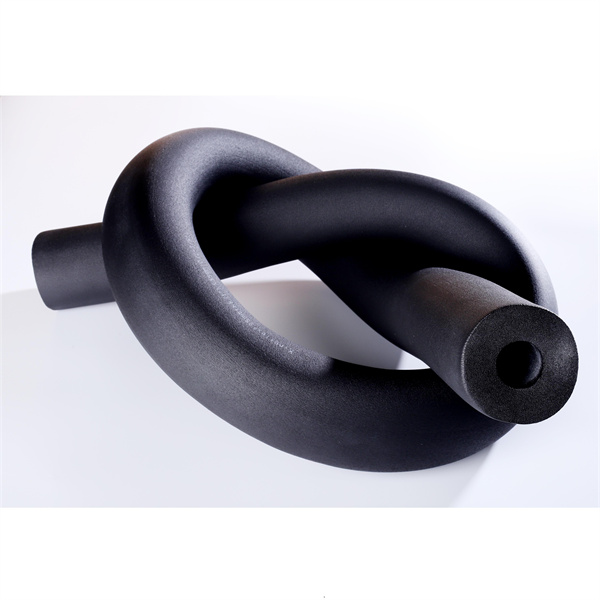

KingFlex 6mm-40mm thick Fire Retardant Nitrile Foam Insulation Tube adopts high-performance NBR/PVC as the main raw material with various quality supplementary material by special frothing process to produce the soft energy conversation foam insulation. It has closed cell construction and has many great features. It can be widely used in large-scale central and home air conditioning,construction, chemicals, textile and electrical industries. using health and safety, soft and beautiful appearance, easy to bend, convenient and quick construction, without other auxiliary materials. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Insulation Material Demonstration 1
Insulation Material Demonstration 2
Insulation Material Demonstration 3
Insulation Material Demonstration 4

Key Features

  • 🛡️ 1. Closed-cell Structure
  • 🔥 2. Low Heating Conductivity
  • 💧 3. Low Water Absorption Rate
  • 🔇 4. Good Fireproof & Soundproof
  • 5. Good Aging Resistance
  • 🛠️ 6. Simple & Easy Installation

Applications

Rubber foam insulation materials are designed to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also efficiently reduces heat transfer for hot-water plumbing, liquid-heating, and dual-temperature piping.

It is ideal for applications in:

  • Ductwork
  • Dual temperature and low pressure steam lines
Application Specification Chart

Technical Data Sheet

Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10⁻¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Production Process 1
Production Process 2
Product Quality Inspection
Stock and Inventory
Packaging Detail
Warehouse Management
Loading and Shipment

Frequently Asked Questions

What are the main benefits of using closed-cell structure rubber foam?
The closed-cell structure provides excellent resistance to water vapor transmission, low thermal conductivity, and prevents moisture intrusion, ensuring long-term thermal efficiency.
What temperature limits can this rubber foam insulation tolerate?
According to the technical data, it performs reliably across a temperature range of -50°C to 110°C, making it suitable for both cooling and dual-temperature piping systems.
How does the material perform under fire safety tests?
It meets Class 0 and Class 1 fire ratings according to BS 476 Part 6 & Part 7, and passes the ASTM E 84 standard with a Flame Spread/Smoke Developed index of 25/50.
Is this insulation resistant to environmental factors like UV or mold?
Yes, it shows good resistance to fungi (ASTM 21), ozone (GB/T 7762-1987), and UV/weathering (ASTM G23), ensuring stable performance over time.
What applications are best suited for rubber foam insulation?
It is widely used in refrigeration lines, chilled water systems, hot-water plumbing, dual-temperature piping, and ductwork to control condensation and reduce heat transfer.
