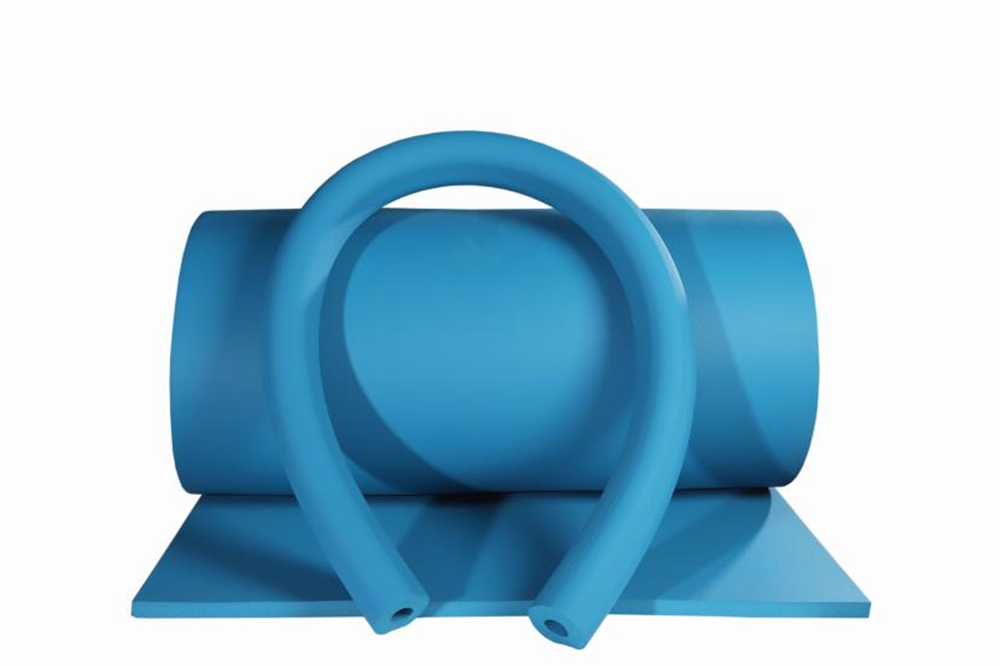

One of the key features of Cryogenic Rubber Foam is its exceptional insulation properties. Its closed-cell structure helps to prevent the transfer of heat, making it an ideal choice for use in cryogenic tanks, pipelines, and other cold storage applications.
| Dimension Specifications | |||
|---|---|---|---|
| Inches | mm | Size (L * W) | ㎡ / Roll |
| 3/4" | 20 | 10 × 1 | 10 |
| 1" | 25 | 8 × 1 | 8 |
| Property | Base Material | Standard / Test Method | |
|---|---|---|---|
| ULT | LT | ||
| Thermal Conductivity | -100°C: 0.028 -165°C: 0.021 |
0°C: 0.033 -50°C: 0.028 |
ASTM C177 |
| Density Range | 60-80 Kg/m³ | 40-60 Kg/m³ | ASTM D1622 |
| Recommend Operation Temperature | -200°C to 125°C | -50°C to 105°C | - |
| Percentage Of Close Areas | >95% | >95% | ASTM D2856 |
| Moisture Performance Factor | NA | <1.96x10g(m.m.Pa) | ASTM E 96 |
| Wet resistance Factor μ | NA | >10000 | EN12086 EN13469 |
| Water Vapor Permeability Coefficient | NA | 0.0039g/h.m² (25mm thickness) |
ASTM E 96 |
| PH | ≥8.0 | ≥8.0 | ASTM C871 |
| Tensile Strength Mpa | -100°C, 0.30 -165°C, 0.25 |
0°C, 0.15 -50°C, 0.218 |
ASTM D1623 |
| Compressive Strength Mpa | -100°C, ≤0.3 | -40°C, ≤0.16 | ASTM D1621 |
