Wholesale isolation pipe 1/4" ID Supplier, Pricelist

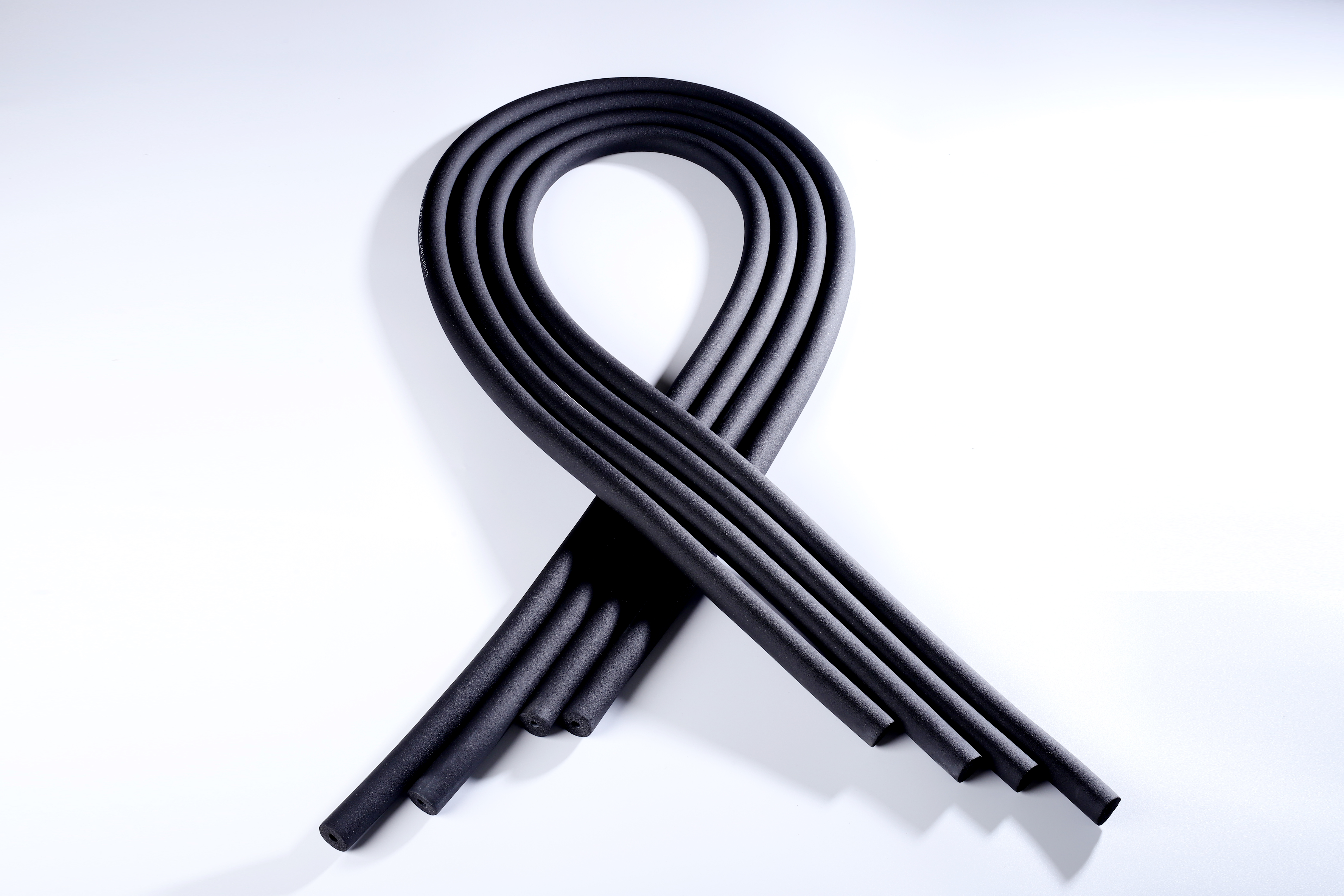

Kingflex is the fiber-free, flexible, elastomeric pipe insulation for reliable protection against condensation, mold, energy loss and ultraviolet radiation in residential and commercial applications. The closed-cell nature of elastomeric foam insulation provides superior protection against thermal losses, condensation and moisture accumulation that leads to mold. It is the ideal choice for insulating mechanical piping systems.

Send Inquiry

Product Description

High-Performance Thermal Insulation

Growth in the construction industry and many other industrial segments, combined with concerns over rising energy costs and noise pollution, is fueling market demand for thermal insulation. With more than four decades of dedicated experience in manufacturing and applications, our insulation manufacturing company is riding on the top of the wave.

Key Material Characteristics & Benefits

✓ Closed-cell structure provides excellent condensation and energy-loss control
✓ Effectively retards degradation due to ultraviolet (UV) radiation
✓ Flexible material with dusted, relaxed ID’s for easy installation
✓ Superior toughness to withstand on-site handling
✓ Built-in vapor barrier eliminates need for additional vapor retarder
✓ Complete size range for HVAC/R systems
✓ Distinguish between different pipelines clearly
✓ Distinguish between different pipelines efficiently

Nominal Wall Thicknesses Available: 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25, 32, 40 and 50mm)
Standard Length: 6ft (1.83m) or 6.2ft (2m)

Technical Data

Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10⁻¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 & Part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

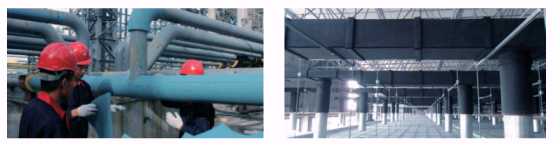

Our Rubber Foam Insulation could be used in schools, hospitals, government institutions and commercial spaces of all types value the long-term performance. Its moisture-resistant characteristics make it especially valuable on chilled-water and refrigeration piping where condensation might otherwise soak through fibrous types of insulations, significantly degrading their thermal performance, leaving them susceptible to fungal growth and ultimately shortening their life cycle. Moisture-resistant insulation, however, maintains its physical and thermal integrity -- for the life of the mechanical system!

Frequently Asked Questions (FAQ)

What are the primary applications for this rubber foam insulation?

It is highly recommended for schools, hospitals, government buildings, and commercial environments, particularly for protecting chilled-water lines, refrigeration piping, and HVAC/R systems where condensation control is critical.

How does the closed-cell structure benefit thermal efficiency?

The closed-cell configuration forms a built-in barrier that blocks moisture penetration and minimizes energy loss. This ensures the insulation retains its thermal integrity without needing additional external vapor barriers.

What fire and smoke performance standards does the product meet?

The insulation holds Class 0 and Class 1 fire ratings according to BS 476 Part 6 & 7. Additionally, it achieves a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84, alongside an oxygen index score of ≥36.

Does this insulation offer resistance to outdoor weather and environmental factors?

Yes. The material is formulated to resist ultraviolet (UV) radiation (tested under ASTM G23), ozone degradation (tested under GB/T 7762-1987), and biological fungal growth (tested under ASTM 21).

What dimensions and thicknesses are available?

It is manufactured in nominal thicknesses from 1/4” up to 2” (6mm to 50mm) and supplied in standard lengths of either 6ft (1.83m) or 6.2ft (2m).

Why is this foam insulation superior to traditional fibrous insulation on cold pipelines?

Fibrous insulation can soak up condensed moisture, drastically reducing its thermal insulation capacity and allowing mold to develop. Our moisture-resistant rubber foam insulation prevents moisture absorption, ensuring long-term physical stability and insulation performance.
