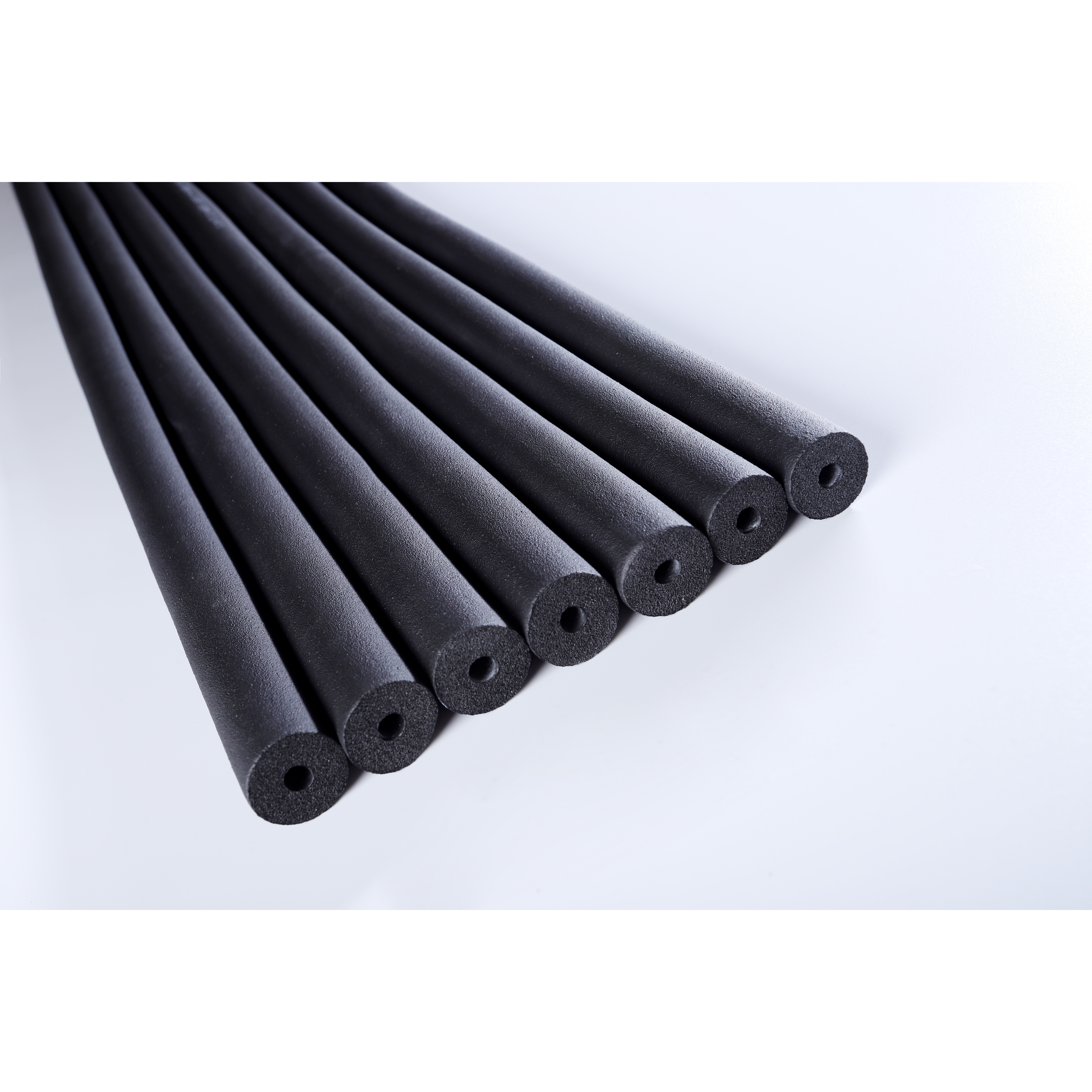

Wholesale Kingflex closed cell flexible rubber foam pipe insulation Supplier, Quotes

Kingflex closed cell flexible rubber foam pipe insulation is the introduction of foreign cutting-edge technology and automatic production line, with excellent performance of nitrile rubber and polyvinyl chloride as the main material, through the special process of burying, curing, foaming and other processes produced. Normal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm). Standard Length with 6ft (1.83m) or 6.2ft(2m).

Product Description

Insulation Material Performance
Foam Pipe Insulation
Thermal Insulation Process
Closed Cell Structure
Excellent fire-resistance performance & Sound absorption
Low thermal conductivity (K-Value)
Good moisture resistance
No crust rough skin
Good pliability and good anti-vibration
Environmentally friendly
Easy to install & Nice appearance
High oxygen index and low smoke density
Improve the energy efficiency of the building
Reduce transmission of exterior sound to the interior
Absorb reverberating sounds within the building
Provide thermal efficiency (Warm in winter, cool in summer)

Closed cell flexible rubber foam pipe insulation is made from NBR and PVC as main raw material and other high quality auxiliary materials through foaming. It can be widely used for air conditioning, construction, chemical industry, medicine, light industry and so on.

Flexible rubber foam insulation pipe
Technical Data Sheet
Technical Data
Property Unit Value Test Method
Temperature range °C (-50 - 110) GB/T 17794-1999
Density range Kg/m³ 45-65Kg/m³ ASTM D1667
Water vapor permeability Kg/(m.s.pa) ≤0.91×10 ﹣¹³ DIN 52 615 / BS 4370 Part 2 1973
μ - ≥10000 -
Thermal Conductivity W/(m.k) ≤0.030 (-20°C) ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating - Class 0 & Class 1 BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index - 25/50 ASTM E 84
Oxygen Index - ≥36 GB/T 2406, ISO4589
Water Absorption, % by Volume % 20% ASTM C 209
Dimension Stability - ≤5 ASTM C534
Fungi resistance - Good ASTM 21
Ozone resistance Good GB/T 7762-1987
Resistance to U.V. and weather Good ASTM G23
Rubber foam pipeline application
Industrial insulation setup
Closed cell insulation tubes
Thermal protection cover
AC duct pipe insulation
Pliable insulating foam
Insulation material roll and pipe
Frequently Asked Questions
What are the primary applications of closed cell rubber foam insulation?
It is widely used for air conditioning systems, construction, chemical processing, medical production facilities, and light industries due to its excellent thermal and moisture protection.
How does the material perform in terms of fire safety?
The insulation meets Class 0 & Class 1 fire ratings according to BS 476 standards. It features a high oxygen index and low smoke density, ensuring reliable fire-resistance performance.
What is the temperature limit for this rubber foam insulation?
It operates efficiently within a wide temperature range of -50°C to 110°C, making it suitable for both cold piping systems and hot water pipes.
Does the insulation help with environmental protection and noise control?
Yes. It is environmentally friendly and acts as a sound-absorbing layer that reduces the transmission of exterior sound into the building and minimizes reverberating sounds inside.
How does it contribute to energy efficiency?
By offering very low thermal conductivity and stable density, it keeps buildings warmer during winter and cooler in summer, effectively lowering overall energy consumption.
