1. Splendid Surface
Nitron-Bubble NBR/PVC insulation material has a flat and even surface without obvious goffer. Under pressure, it appears symmetrical skin-like wrinkle, which takes on noble and top grade quality.
2. Excellent OI Critical Value
Nitron-Bubble NBR/PVC insulation material requires a high oxygen index, which makes it possess great fireproof capability.
3. Outstanding Smoke Density Class
Nitron-Bubble NBR/PVC insulation material has quite a low smoke density class as well as low smog thickness, which provide good action when it is burning.
4. Agelong Life In Heat Conductivity Value (K-Value)
Nitron-Bubble NBR/PVC insulation material has a long-term, stable K-value, which guarantees a long life span of the products.
5. High Moisture Resistance Factor (u-Value)
Nitron-Bubble NBR/PVC insulation material has a high moisture resistance factor, u≥15000, which gives it a strong ability in anti-condensation.
6. Firm Performance in Temperature and Anti-Aging
Nitron-Bubble NBR/PVC insulation material has excellent capability in anti-ozone, anti-insolation, and anti-ultraviolet, which ensures a long life span.
Technical Data
| Property |
Unit |
Value |
Test Method |
| Temperature range |
°C |
(-50 - 110) |
GB/T 17794-1999 |
| Density range |
Kg/m³ |
45-65Kg/m³ |
ASTM D1667 |
| Water vapor permeability |
Kg/(m.s.pa) |
≤0.91×10⁻¹³ |
DIN 52 615 / BS 4370 Part 2 1973 |
| μ |
- |
≥10000 |
- |
| Thermal Conductivity |
W/(m.k) |
≤0.030 (-20°C) |
ASTM C 518 |
| ≤0.032 (0°C) |
| ≤0.036 (40°C) |
| Fire Rating |
- |
Class 0 & Class 1 |
BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index |
- |
25/50 |
ASTM E 84 |
| Oxygen Index |
- |
≥36 |
GB/T 2406, ISO4589 |
| Water Absorption, % by Volume |
% |
20% |
ASTM C 209 |
| Dimension Stability |
- |
≤5 |
ASTM C534 |
| Fungi resistance |
- |
Good |
ASTM 21 |
| Ozone resistance |
- |
Good |
GB/T 7762-1987 |
| Resistance to U.V. and weather |
- |
Good |
ASTM G23 |

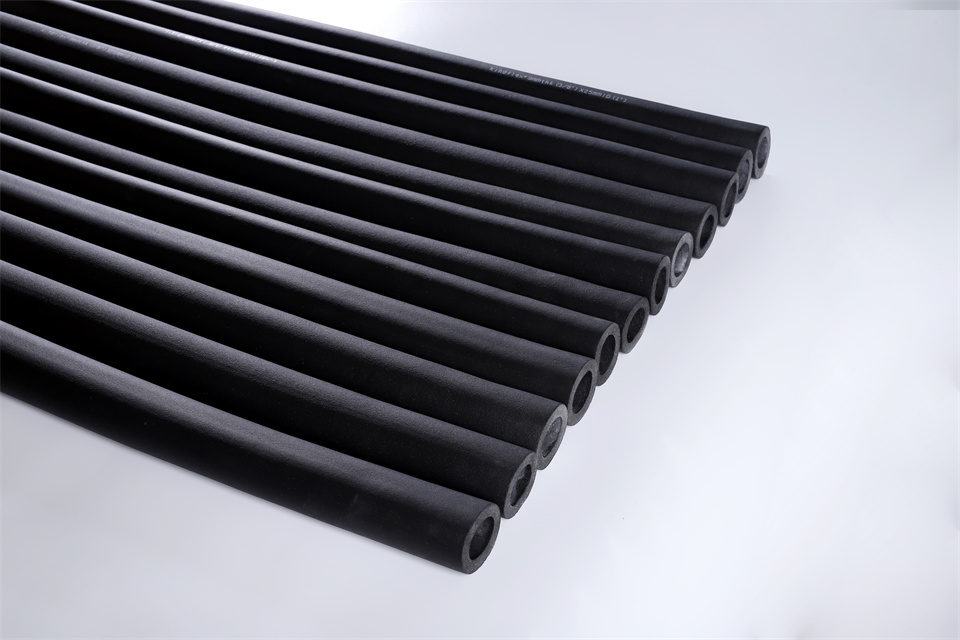

Rubber foam products are produced by imported high-end technology and automatic continuous equipment. A rubber foam insulation material with excellent performance has been developed through in-depth research. The major materials used are NBR/PVC.
Frequently Asked Questions
Q
What are the key raw materials used in this rubber foam insulation?
The insulation material is primarily manufactured using a high-quality blend of NBR (Nitrile Butadiene Rubber) and PVC (Polyvinyl Chloride).
Q
What is the temperature range application for this NBR/PVC material?
This material functions efficiently and maintains stability across a temperature range of -50°C to 110°C, meeting GB/T 17794-1999 test standards.
Q
How does this insulation material perform in terms of moisture resistance?
It features a highly robust moisture resistance factor (u-Value ≥ 15000), which delivers strong performance in preventing condensation.
Q
Is the NBR/PVC insulation material fire-resistant?
Yes. It maintains Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7 standards, offering an oxygen index of ≥36 and outstanding low smoke density.
Q
Does the material resist environmental aging and UV rays?
Yes, the material exhibits excellent resistance to ozone, insolation, and ultraviolet radiation, which guarantees strong anti-aging capabilities and long-term durability.
