Kingflex
1 / 1
Self extinguishing and no drips according to ASTM D635-91.
Rubber foam is your smart choice for energy saving, with low thermal conductivity ≤0.034 W/m.K.
No dust and fiber, CFC free, Low VOCs, No fungal growth, Negligible bacterial growth.
Due to rubber foam high flexible performance, it is easy to bend and irregular pipes, cut into different shapes and sizes and can save labor and materials.
Can custom various colors such as red, blue, green, grey, yellow, grey and so on. Your finished piping lines will be much nicer and it is easy to distinguish different pipes inside for maintaining.
| Technical Data | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m3 | 45-65Kg/m3 | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 | |

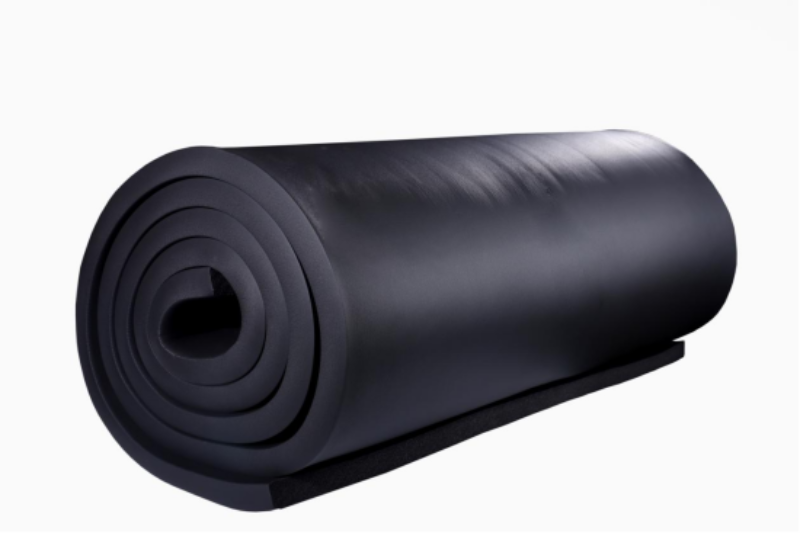

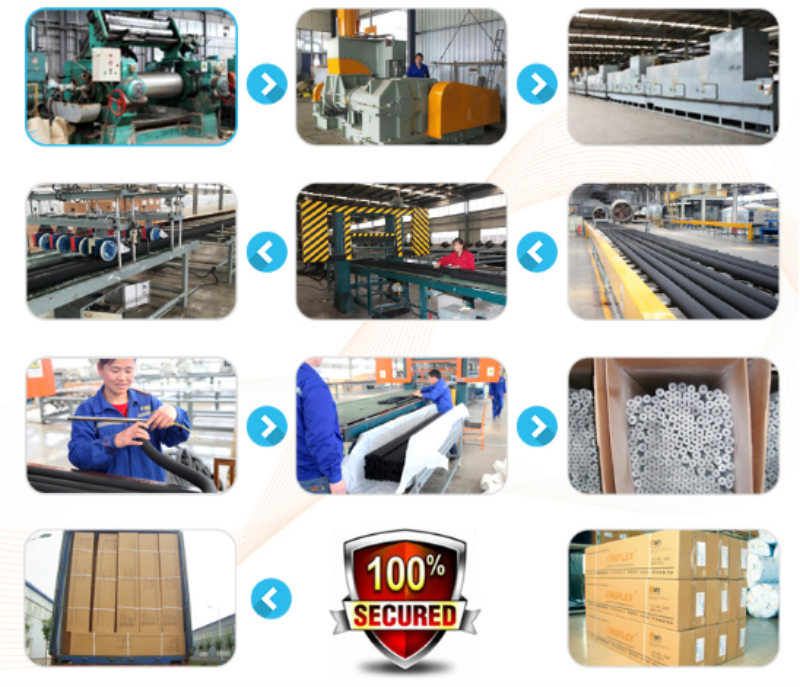

Rubber foam Material is soft heat-insulating, heat-preservation and energy conservation materials made with advanced technology at home and advanced full-automatic continuous production line imported from abroad, using butyronitrile rubber with best performance and polyvinyl Chloride (NBR, PVC) as main raw materials and other high quality auxiliary materials through foaming and so on special procedure.
| Dimension Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | Width 1m | Width 1.2m | Width 1.5m | ||||
| Inches | mm | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll | Size(L*W) | ㎡/Roll |
| 1/4" | 6 | 30 × 1 | 30 | 30 × 1.2 | 36 | 30 × 1.5 | 45 |
| 3/8" | 10 | 20 × 1 | 20 | 20 × 1.2 | 24 | 20 × 1.5 | 30 |
| 1/2" | 13 | 15 × 1 | 15 | 15 × 1.2 | 18 | 15 × 1.5 | 22.5 |
| 3/4" | 19 | 10 × 1 | 10 | 10 × 1.2 | 12 | 10 × 1.5 | 15 |
| 1" | 25 | 8 × 1 | 8 | 8 × 1.2 | 9.6 | 8 × 1.5 | 12 |
| 1 1/4" | 32 | 6 × 1 | 6 | 6 × 1.2 | 7.2 | 6 × 1.5 | 9 |
| 1 1/2" | 40 | 5 × 1 | 5 | 5 × 1.2 | 6 | 5 × 1.5 | 7.5 |
| 2" | 50 | 4 × 1 | 4 | 4 × 1.2 | 4.8 | 4 × 1.5 | 6 |

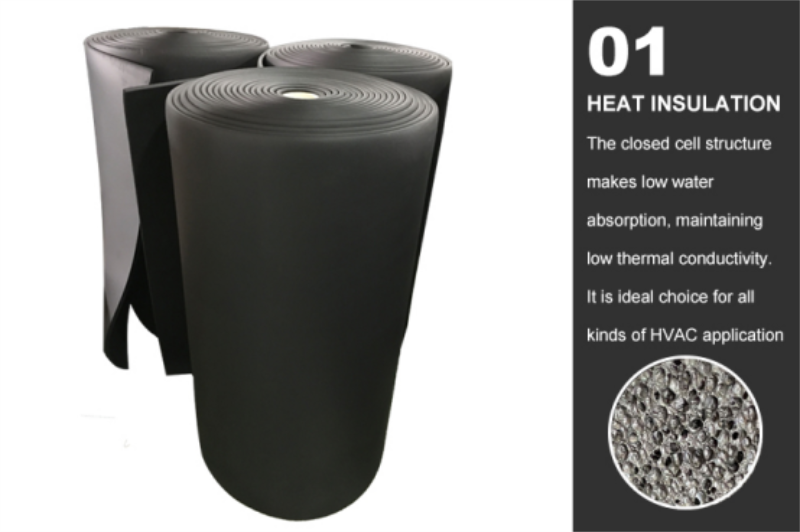

The rubber foam offers low thermal conductivity, measuring ≤0.034 W/m.K, making it highly effective for energy-saving insulation projects.
It features excellent fire performance. It is self-extinguishing and produces no drips under the ASTM D635-91 standard tests, while also meeting Class 0 & Class 1 standards (BS 476 Part 6 & 7).
Yes. The material is dust-free, fiber-free, CFC-free, has low VOC emissions, and exhibits no fungal or bacterial growth, ensuring safety for indoor environments.
Yes, we can customize a variety of colors, such as red, blue, green, grey, and yellow. Custom colors make finished piping systems look better and simplify the identification of different lines during maintenance.
Absolutely. Due to its high flexibility, the rubber foam is easy to bend, wrap around irregular pipes, and cut into custom shapes and sizes. This helps save both labor costs and materials during installation.
The material operates effectively within a temperature range of -50°C to 110°C, tested in compliance with GB/T 17794-1999 standards.
