Wholesale TUBE-1119-1 Supplier, Pricelist

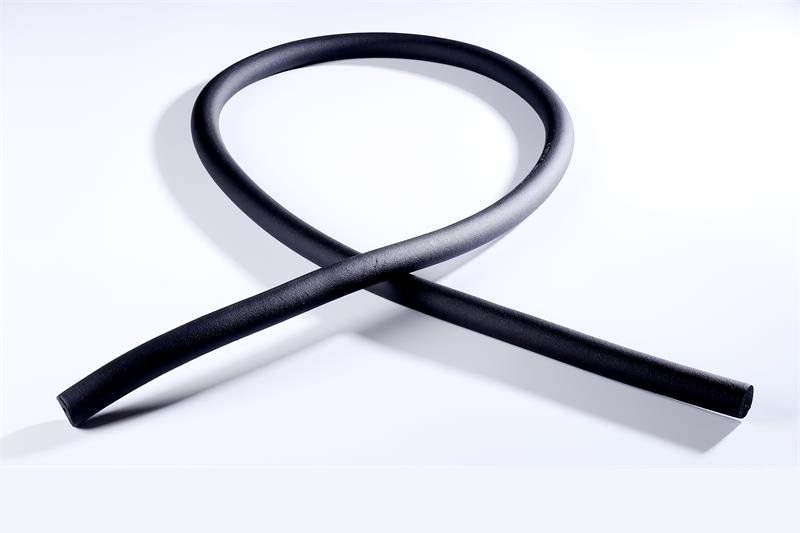

Kingflex rubber foam insulation tube is a flexible closed cell thermal insulation material foamed from rubber as the main raw material. It has no fiber dust, no formaldehyde, and no chlorofluorocarbons. It is suitable for mediums that destroy the ozone layer. Thermal insulation of various pipes and equipment between -50℃-110℃.

Send Inquiry

Product Description

Technical Data

Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m³	45-65Kg/m³	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Key Performance Features

BS 476 Fire Performance

Condensation Prevention

Frost Protection

Energy Saver

Superior Flexibility & Easy Installation

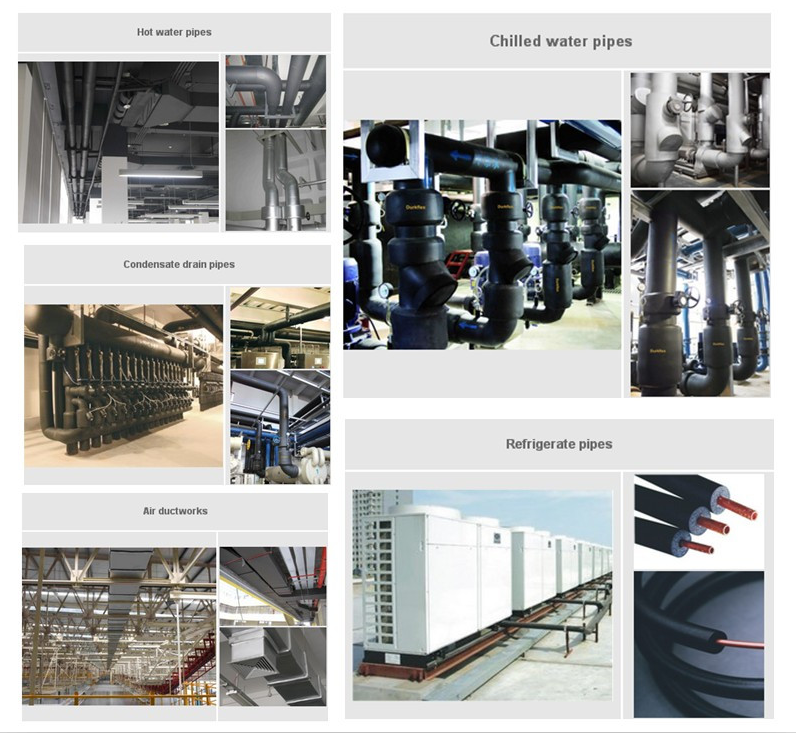

Closed-cell rubber foam insulation material is used for the insulation and insulation of the shells of large tanks and pipes in construction, commercial and industrial, the insulation of central air-conditioning ducts, the insulation of household air-conditioning joints and automotive air-conditioning.

24 hours on-line service to help you answer questions and solve problems with no concern.

Frequently Asked Questions

Q1: What is the operating temperature range of this insulation material?

The closed-cell rubber foam insulation operates reliably within a temperature range of -50°C to 110°C, making it suitable for both cold and hot utility systems.

Q2: What fire safety standards does the insulation comply with?

It meets Class 0 & Class 1 fire ratings according to BS 476 Part 6 & 7. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 in accordance with ASTM E 84.

Q3: Where can this closed-cell rubber foam be applied?

It is ideal for insulating large tanks, piping systems in commercial and industrial construction, central air-conditioning ducts, residential air-conditioning connections, and automotive air conditioning units.

Q4: How does this product perform against moisture and water vapor?

The material offers excellent condensation prevention with a high water vapor permeability resistance factor (μ value ≥ 10000) and a permeability of ≤0.91×10⁻¹³ Kg/(m.s.pa).

Q5: Is the material resistant to environmental factors like UV or mold?

Yes, it has verified "Good" resistance ratings against fungi growth (ASTM 21), ozone (GB/T 7762-1987), and weathering/UV exposure (ASTM G23).
