China Kingflex Closed Cell Rubber Foam Sheet With Aluminum Foil Factories, Pricelist

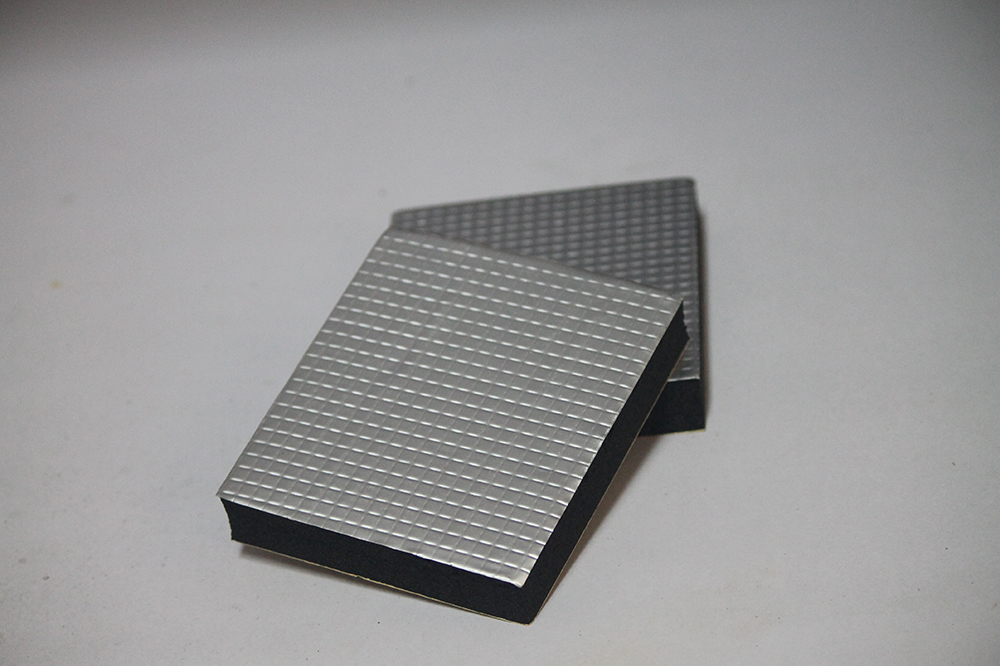

Kingflex high quality low density flexible rubber foam insulation sheet with aluminum foil, appearance of High-grade ,clean ,generous,especially for supermarkets,exhibition centers ,stadiums,workshops and other non-ceiling construction sites.
Aluminum foil rubber foam insulation sheet is a flexible closed foam insulation material. Anti-UV, anti-oxidation, anti-aging, corrosion-resistant. Excellent water resistance with their penetration ability to maintain product initial thermal conductivity coefficient. Greatly improved the life of the products.
Product Dimensions
Thickness
Width 1m
Width 1.2m
Width 1.5m
Inches
mm
Size (L*W)
㎡/Roll
Size (L*W)
㎡/Roll
Size (L*W)
㎡/Roll
1/4"
6
30 × 1
30
30 × 1.2
36
30 × 1.5
45
3/8"
10
20 × 1
20
20 × 1.2
24
20 × 1.5
30
1/2"
13
15 × 1
15
15 × 1.2
18
15 × 1.5
22.5
3/4"
19
10 × 1
10
10 × 1.2
12
10 × 1.5
15
1"
25
8 × 1
8
8 × 1.2
9.6
8 × 1.5
12
1 1/4"
32
6 × 1
6
6 × 1.2
7.2
6 × 1.5
9
1 1/2"
40
5 × 1
5
5 × 1.2
6
5 × 1.5
7.5
2"
50
4 × 1
4
4 × 1.2
4.8
4 × 1.5
6
Key Features
Low Water Absorption Rate
Good Fireproof & Soundproof Performance
Good Flexibility & Tenacity
Good Aging Resistance Performance
Good Vibration Resistance
Closed Pore Foaming & Damp-Proof
Simple & Easy Installation
Technical Data
Property
Unit
Value
Test Method
Temperature range
°C
(-50 - 110)
GB/T 17794-1999
Density range
Kg/m³
45-65Kg/m³
ASTM D1667
Water vapor permeability
Kg/(m.s.pa)
≤0.91×10 ﹣¹³
DIN 52 615 / BS 4370 Part 2 1973
μ
-
≥10000
-
Thermal Conductivity
W/(m.k)
≤0.030 (-20°C)
ASTM C 518
≤0.032 (0°C)
≤0.036 (40°C)
Fire Rating
-
Class 0 & Class 1
BS 476 Part 6 & 7
Flame Spread and Smoke Developed Index
-
25/50
ASTM E 84
Oxygen Index
-
≥36
GB/T 2406, ISO4589
Water Absorption, % by Volume
%
20%
ASTM C 209
Dimension Stability
-
≤5
ASTM C534
Fungi resistance
-
Good
ASTM G21
Ozone resistance
Good
GB/T 7762-1987
Resistance to U.V. and weather
Good
ASTM G23
Frequently Asked Questions (FAQ)
Q1: What is the main application of aluminum foil rubber foam insulation sheet?
A1: It is a flexible closed foam insulation material designed for thermal insulation systems. Its anti-UV, anti-oxidation, anti-aging, and corrosion-resistant properties make it ideal for protecting and insulating various pipelines and HVAC systems.
Q2: How does the moisture-resistant barrier work?
A2: The sheet features a closed pore foaming structure that offers excellent water resistance and a low water absorption rate. This structure prevents moisture penetration, ensuring the initial thermal conductivity coefficient remains stable and significantly extends the product's lifespan.
Q3: What are the fire and safety ratings of this product?
A3: The insulation sheet has been tested according to British Standards (BS 476 Part 6 & 7), achieving Class 0 & Class 1 fire ratings. Additionally, it has a Flame Spread and Smoke Developed Index of 25/50 under ASTM E 84, and an oxygen index of ≥36.
Q4: What is the operational temperature range for this material?
A4: The product performs reliably across a temperature range of -50°C to 110°C, making it highly versatile for both freezing and high-heat insulation requirements.
Q5: Is it suitable for outdoor use with UV exposure?
A5: Yes. Tested under ASTM G23, the insulation sheet demonstrates good resistance to UV, ozone, and weathering, making it durable for challenging outdoor environmental conditions.
