China Kingflex Colored Foam Rubber Sheet Roll Manufacturer, Quotes

Kingflex coloredl rubber foam insulation products widely used in different functional distinctions.

Send Inquiry

Product Description

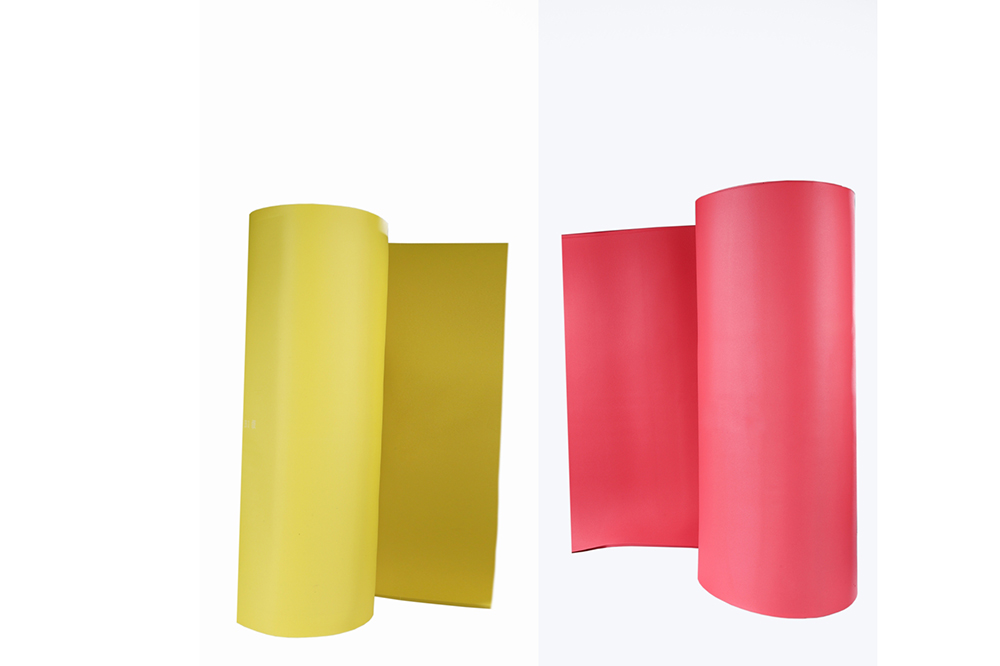

High-quality colorful rubber foam insulation sheet is a flexible and lightweight elastomeric nitrile rubber material designed for thermal insulation. Rubber foam insulation sheet is generally black in color, other colors are available upon request. The product comes in the tubing, roll, and sheet form. The flexible sheet is specially designed to fit the standard diameters of copper, steel, and PVC piping.

Dimension Specifications

Dimension Chart
Thickness		Width 1m		Width 1.2m		Width 1.5m
Inches	mm	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll	Size(L*W)	㎡/Roll
1/4"	6	30 × 1	30	30 × 1.2	36	30 × 1.5	45
3/8"	10	20 × 1	20	20 × 1.2	24	20 × 1.5	30
1/2"	13	15 × 1	15	15 × 1.2	18	15 × 1.5	22.5
3/4"	19	10 × 1	10	10 × 1.2	12	10 × 1.5	15
1"	25	8 × 1	8	8 × 1.2	9.6	8 × 1.5	12
1 1/4"	32	6 × 1	6	6 × 1.2	7.2	6 × 1.5	9
1 1/2"	40	5 × 1	5	5 × 1.2	6	5 × 1.5	7.5
2"	50	4 × 1	4	4 × 1.2	4.8	4 × 1.5	6

Key Features

✓ Good Fire-blocking
✓ Closed Pore Foaming
✓ Good Damp-proof Property
✓ Good Pliability
✓ Good Anti-bending
✓ High Density
✓ Beautiful Appearance
✓ Easy to Install
✓ Safety and Environmental Protection

Technical Data Specification

Technical Parameters
Property	Unit	Value	Test Method
Temperature range	°C	(-50 - 110)	GB/T 17794-1999
Density range	Kg/m3	45-65Kg/m3	ASTM D1667
Water vapor permeability	Kg/(m.s.pa)	≤0.91×10 ﹣¹³	DIN 52 615 / BS 4370 Part 2 1973
μ	-	≥10000	-
Thermal Conductivity	W/(m.k)	≤0.030 (-20°C)	ASTM C 518
		≤0.032 (0°C)
		≤0.036 (40°C)
Fire Rating	-	Class 0 & Class 1	BS 476 Part 6 part 7
Flame Spread and Smoke Developed Index	-	25/50	ASTM E 84
Oxygen Index	-	≥36	GB/T 2406, ISO4589
Water Absorption, % by Volume	%	20%	ASTM C 209
Dimension Stability	-	≤5	ASTM C534
Fungi resistance	-	Good	ASTM 21
Ozone resistance		Good	GB/T 7762-1987
Resistance to U.V. and weather		Good	ASTM G23

Frequently Asked Questions (FAQ)

Q: What is the recommended operating temperature range for this rubber foam insulation sheet?

The rubber foam insulation sheet operates efficiently within a temperature range of -50°C to 110°C, making it highly versatile for various industrial and commercial insulation applications.

Q: What are the fire safety ratings of this thermal insulation material?

This material has excellent fire-blocking performance. It has been tested and certified as Class 0 & Class 1 according to the BS 476 Part 6 and Part 7 standards.

Q: How does the closed pore foaming structure improve performance?

The closed pore foaming structure prevents water vapor and moisture penetration, offering exceptional damp-proof capability and ensuring long-lasting thermal resistance.

Q: Can I order these insulation sheets in colors other than black?

Yes, while black is the standard color for rubber foam insulation sheets, other custom colors are available upon request to suit your design or code requirements.

Q: What piping materials is the flexible rubber foam sheet designed to fit?

The flexible sheets are specifically designed to fit standard diameters of copper, steel, and PVC piping, allowing for easy and seamless installations.
