Wholesale rock wool thermal Insulation Pipe Suppliers, Pricelist

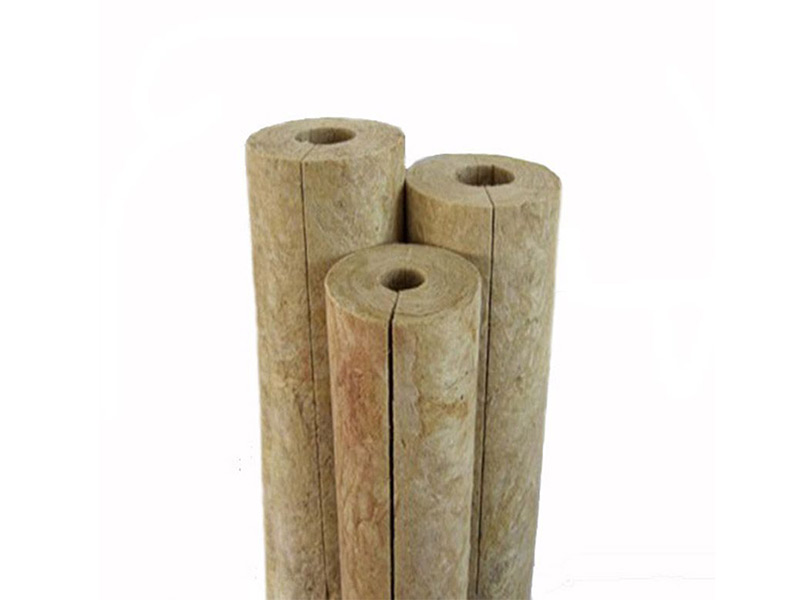

Kingflex rock wool insulation pipe is produced with natural basalt as main material, melted in high temperature and made into artificial abio-fibers by high speed centifugal equipment, then added with special agglomerates and dustproof oil, heated and solidified into various rock wool heat preservation products in different specifications according to different requirements. Kingflex rock wool insulation pipe have many advantages such as light weight, good performance as a whole and low coefficient of heat conductivity. They are widly used in construction and other inductries in heat preservation field. It also has a good function of sound absorption, so it can be used to reduce the industrial noise and deal with the sound absorption in building.

Send Inquiry

Product Description

Technical Indicators	Technical Performance	Remark
Thermal conductivity	0.042w/m.k	Normal temperature
Slag inclusion content	<10%	GB11835-89
Non-combustible	A	GB5464
Fiber diameter	4-10um
Service temperature	-268-700℃
Moisture rate	<5%	GB10299
Tolerance of density	+10%	GB11835-89

Excellent Protection: Designed to be applied around pipes carrying substances at temperatures between 12°C and 150°C, our products help prevent heat loss during transportation and protect against dangerous fire hazards.

Hot pipe insulation forms an important part of rock wool insulation pipe Heating, Ventilation and Air Conditioning (HVAC) range. Hot pipes are widely used for heating and warm water distribution in large buildings and complexes, such as airports, factories and high-rise residential blocks.

The distances travelled by hot pipes can be long, and the spaces they pass through extremely cold. This is especially true during the autumn or winter months, when the need for them is at its highest.

Rock wool Pipes waterproof rock wool pipe
size	mm	length 1000 ID 22-1220 thick 30-120
density	kg/m³	80-150

Insulation acts to keep the heat inside the pipes while air or water is being transported from the boiler/heating system to central heating units. This helps ensure minimal temperature loss while in transit, and a comfortable indoor atmosphere.

Frequently Asked Questions (FAQ)

What is the thermal conductivity of the rock wool insulation pipe?

The thermal conductivity of the rock wool insulation pipe is 0.042 w/m.k under normal temperature conditions.

What is the service temperature range for this product?

This product is highly versatile, operating effectively in service temperatures ranging from -268°C to 700°C.

Is the insulation pipe non-combustible?

Yes, it achieves a Class A non-combustible rating according to the GB5464 technical indicator standards, offering excellent fire hazard protection.

What are the standard dimensions for these rock wool pipes?

The standard length is 1000 mm, with an inside diameter (ID) range of 22-1220 mm, and thickness options spanning 30-120 mm.

What is the density range of this waterproof insulation pipe?

The density of the waterproof rock wool pipe ranges from 80 to 150 kg/m³.

Where are these hot pipe insulation solutions typically applied?

They are commonly used for heating and warm water distribution in Heating, Ventilation, and Air Conditioning (HVAC) systems of large structures, including airports, factories, and high-rise residential complexes.
