China flexible halogen-free thermal insulation pipe tubing Pricelist, Quotes

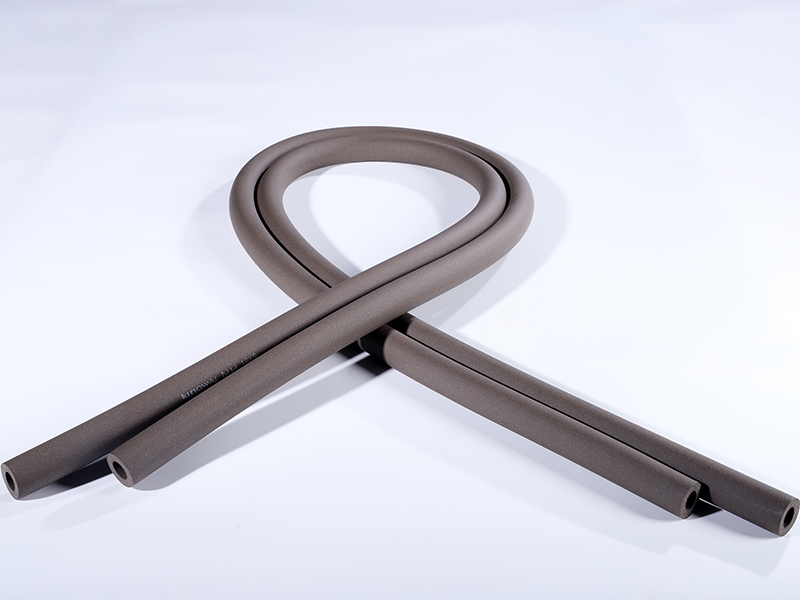

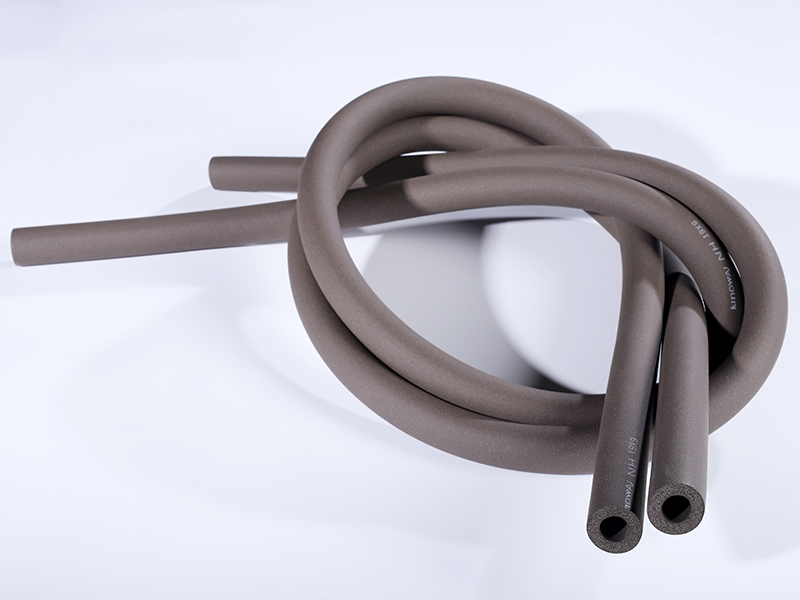

Kingflex Halogen-free flexible closed-cell thermal insulation tube is in dark grey color. Certified for use in marine environments, rail and military sectors. Also Kingflex halogen-free flecible closed cell thermal insulation tube is suitable to use on clean and server rooms. Kingflex halogen-free flecible closed cell thermal insulation tube meets the demand for insulation material with minimal smoke and toxic emissions in the event of a fire. As a closed cell material, Kingflex halogen-free flecible closed cell thermal insulation tube provides exceptional water vapour resistance and features all the properties which you can expect from a flexible insulation material, such as low thermal conductivity. Kingflex halogen-free flecible closed cell thermal insulation tube is a halogen-free, flexible, closed-cell elastomeric tube insulation product.
Kingflex Halogen-free flexible closed-cell thermal insulation tube is available in ½”, ¾” and 1” wall thicknesses in non-slit form.
Marine & Shipbuilding
Designed specifically for the Marine and Shipbuilding Industry, withstanding temperature ranges up to 250°F (300°F intermittent).
Stainless Steel Safe
Contains zero carbon black, making it ideal for stainless steel applications operating above 120°F without corrosion risks.
Eco-Friendly & Safe
Free from fibers, PVC, and CFCs. Provides the safest and most reliable insulation solution for enclosed areas on marine and cruise ships.
Item
Value
Unit
Density
60
kg/m³
Water vapour diffusion resistance factor
≥2000
-
Thermal Conductivity
0.04
W/(m·K)
Maximum service temperature
110
°C
Minimum service temperature
-50
°C
Reaction to fire
S3, d0
-
Kingflex Halogen-free flexible closed-cell thermal insulation tube is mainly used for Insulation / protection for pipes, air ducts, vessels (incl. Elbows, fittings, flanges etc.) of air-conditioning / refrigeration, ventilation and process equipment to prevent condensation and save energy.
Frequently Asked Questions
What thicknesses are available for the Kingflex Halogen-free thermal insulation tube?
It is available in ½”, ¾” and 1” wall thicknesses in non-slit form.
What temperature range can this insulation tube withstand?
It is designed to withstand temperature ranges up to 250°F (300°F intermittent), with a maximum service temperature of 110°C and a minimum service temperature of -50°C.
Why is it recommended for stainless steel applications above 120°F?
It does not contain carbon black, which makes it safe and ideal for stainless steel applications operating above 120°F.
Is this insulation tube safe for enclosed areas on cruise ships?
Yes. Because it is halogen-free and does not contain fibers, PVC, or CFCs, it is the best solution for enclosed spaces on marine and cruise ships.
What are the primary applications of Kingflex Halogen-free insulation tubes?
It is mainly used to insulate and protect pipes, air ducts, and vessels (including elbows, fittings, and flanges) for air-conditioning, refrigeration, ventilation, and process equipment to prevent condensation and conserve energy.
What are the density and thermal conductivity ratings of this product?
The product has a density of 60 kg/m³ and a thermal conductivity rating of 0.04 W/(m·K).
