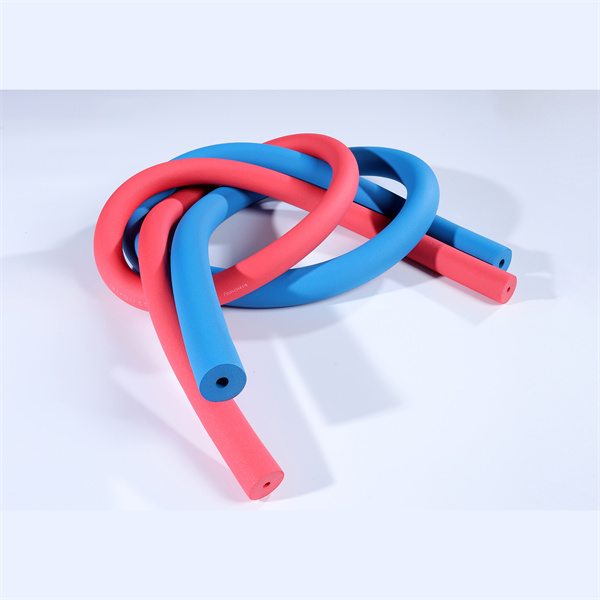

The insulated pipe is made of NBR and PVC. It doesn't contain fibrous dust, benzaldehyde and chlorofluorocarbons. Moreover, it has low conductivity & heat conductivity, good moisture resistance, and fireproof.
The insulated pipe can be widely used in cooling unit and equipment of central air conditioning, freezing water pipe, condensing water pipe, air ducts, hot-water pipe and so on.
The insulated pipe not only can be easily installed with the new pipeline, but also can be used in the existing pipeline. The only thing you need to do is to cut it, then glue it. Moreover, it doesn't have negative influence of the performance of the insulated pipe.
The wall thickness ranges from 6.25 mm to 50mm, and the inside diameter is from 6mm to 89mm.
The products are stock and the quantity of supplying is large.
We can offer the service according to the customers' requests.
| Property | Unit | Value | Test Method |
|---|---|---|---|
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ (Water vapor resistance) | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 & 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM G21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 |
The insulated pipe is made of high-quality NBR (Nitrile Butadiene Rubber) and PVC. It does not contain fibrous dust, benzaldehyde, or chlorofluorocarbons, ensuring safe and dust-free usage.
They are widely used in cooling units and central air conditioning systems, freezing water pipelines, condensing water pipelines, air ducts, hot-water pipelines, and similar piping systems.
Yes, it can be easily installed on both new and existing pipelines. For existing pipelines, simply cut the insulation pipe, wrap it around the pipeline, and glue it together. This process will not negatively affect the pipe's performance.
We offer a complete range of models with wall thicknesses ranging from 6.25 mm to 50 mm, and inside diameters ranging from 6 mm to 89 mm.
According to the technical standards, the insulated pipe achieves a fire rating of Class 0 & Class 1 under the BS 476 Part 6 & Part 7 test standards.
Yes, we provide personal customized services to match and satisfy various specifications and requests according to our customers' application needs.
