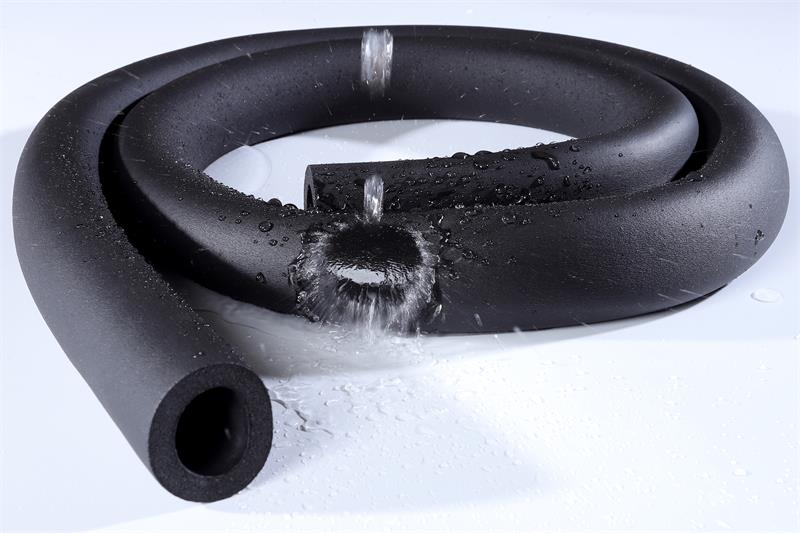

Kingflex rubber foam insulation materials are designed for heat-insulating and heat-preservation of the shells of big tanks and piping in construction, business, and industry applications. It is widely used for the heat insulation of air conditioners, as well as the joint pipes of household and automobile air conditioning systems.
| Kingflex Technical Data | |||
|---|---|---|---|
| Property | Unit | Value | Test Method |
| Temperature range | °C | (-50 - 110) | GB/T 17794-1999 |
| Density range | Kg/m³ | 45-65Kg/m³ | ASTM D1667 |
| Water vapor permeability | Kg/(m.s.pa) | ≤0.91×10 ﹣¹³ | DIN 52 615 / BS 4370 Part 2 1973 |
| μ | - | ≥10000 | - |
| Thermal Conductivity | W/(m.k) | ≤0.030 (-20°C) | ASTM C 518 |
| ≤0.032 (0°C) | |||
| ≤0.036 (40°C) | |||
| Fire Rating | - | Class 0 & Class 1 | BS 476 Part 6 part 7 |
| Flame Spread and Smoke Developed Index | - | 25/50 | ASTM E 84 |
| Oxygen Index | - | ≥36 | GB/T 2406, ISO4589 |
| Water Absorption, % by Volume | % | 20% | ASTM C 209 |
| Dimension Stability | - | ≤5 | ASTM C534 |
| Fungi resistance | - | Good | ASTM 21 |
| Ozone resistance | Good | GB/T 7762-1987 | |
| Resistance to U.V. and weather | Good | ASTM G23 | |
Ensures consistent and reliable long-term performance under various environmental conditions.
High resistance against moisture penetration to prevent condensation and corrosion.
Meets stringent fire safety standards with excellent flame spread and smoke development ratings.
Eco-friendly manufacturing, formulated completely without formaldehyde.
Kingflex rubber foam insulation is widely used for heat-insulating and heat-preservation of shells of large tanks and piping in construction, commercial, and industrial sectors. It is also highly effective for insulating air conditioning units, household air conditioner joint pipes, and automobile air conditioners.

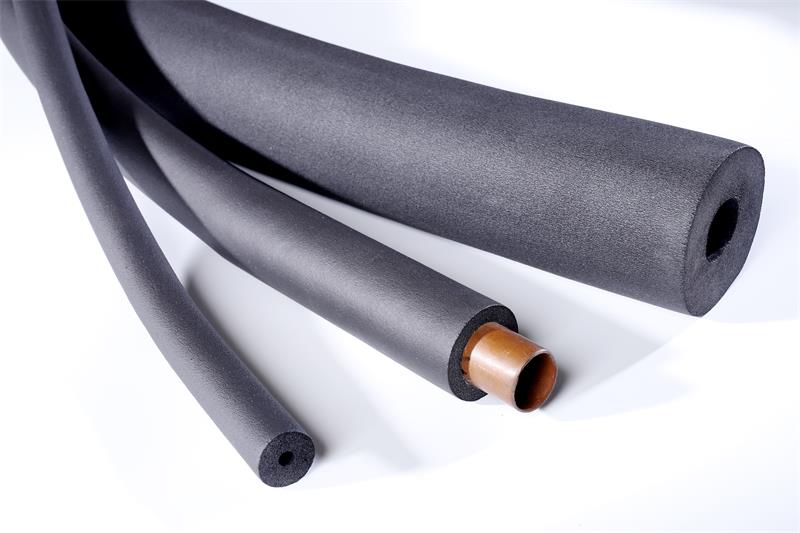

It is available in nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″, 1″, 1-1/4”, 1-1/2″, and 2” (ranging from 6mm to 50mm). The standard lengths offered are 6ft (1.83m) or 6.2ft (2m).
Yes, it achieves Class 0 and Class 1 fire ratings according to BS 476 Part 6 & Part 7, and meets the 25/50 Flame Spread and Smoke Developed Index standard under ASTM E 84, ensuring excellent fire safety performance.
It features high water vapor permeability resistance (μ ≥ 10000) and low water absorption. Additionally, it offers good resistance to fungi, ozone, UV radiation, and general weathering, making it suitable for demanding conditions.
Yes, it is designed for environmental health and is manufactured completely without formaldehyde, ensuring safe indoor air quality and compliance with environmental regulations.
